Same model may have multiple batches, images only for reference.

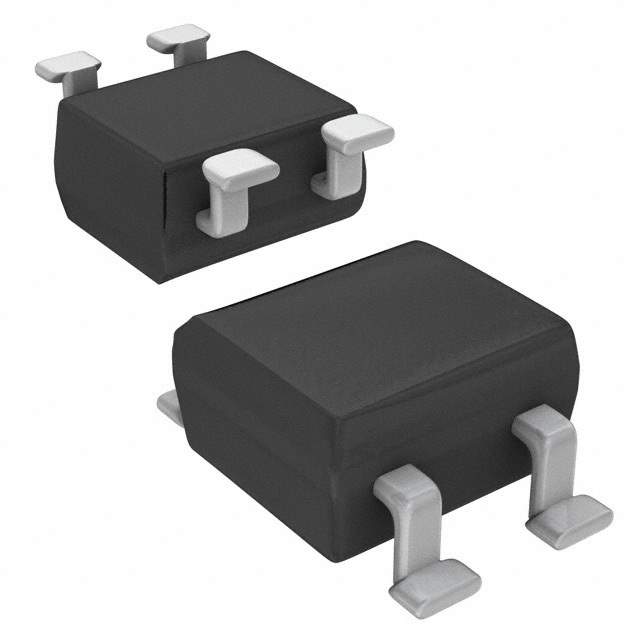

CDBHM2100L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBHM2100L-HF

Part No CDBHM2100L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 100V 2A MBS2
Datasheet
CDBHM2100L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 100V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 850mV @ 2A
Current - Reverse Leakage @ Vr 1mA @ 100V
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package MBS-2
Win Source Part Number 1064808-CDBHM2100L-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CDBHM2100L-HF CAD Model

Description

The CDBHM2100L-HF is a Schottky diode manufactured by Comchip Technology.

  • Win Source Part Number: 1064808
  • Current Rating: 2A
  • Voltage Rating: 100V
  • Diode Type: Single-phase
  • Forward Voltage: 850mV @ 2A
  • Packaging: MBS-2 with a reel-TR package
  • Operating Temperature: -55°C to 125°C (TJ)
  • Current Reverse Leakage: 1mA @ 100V
  • Supply and Demand Status: Balance
  • Quantity per Package: 3k pcs
