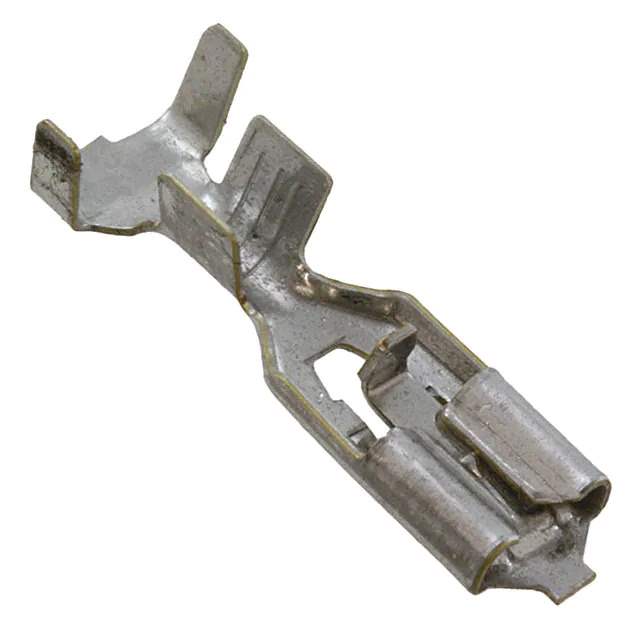

170326-1 Real Image
Same model may have multiple batches, images only for reference.

170326-1

Part No 170326-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-18AWG 0.187
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity
Series Mark II
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.236" (6.00mm)
Length - Overall 0.850" (21.59mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.083" ~ 0.141" (2.11mm ~ 3.58mm)
Base Product Number 170326
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854107-170326-1
Ultra Librarian 3D Model Ultra Librarian 170326-1 CAD Model

Description

The Mark II Female Quick Connect is a terminal designed for use in electronic components.

  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Termination: Crimp
  • Standard Package: 5,000 pcs
  • Series: Mark II
  • Manufacturer: TE Connectivity
  • Product Status: Active
  • ECCN: EAR99
