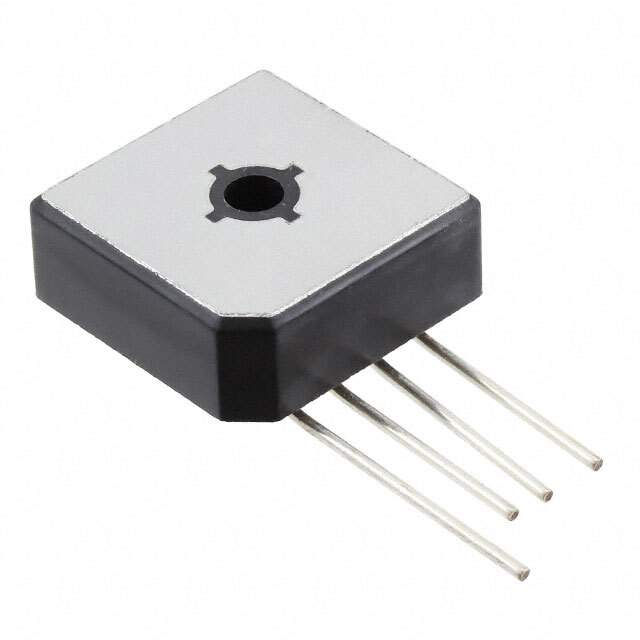

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 50A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package BR-L
Win Source Part Number 1024270-BR5010L-G
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 60
Ultra Librarian 3D Model Ultra Librarian BR5010L-G CAD Model

Description

The Comchip Technology BR5010L-G is a single-phase diode with a maximum peak reverse voltage of 1000V and an average rectified current of 50A.

  • Maximum Peak Reverse Voltage: 1000V
  • Average Rectified Current: 50A
  • Voltage Forward: 1.1V @ 25A
  • Current Reverse Leakage: 10μA @ 1000V
  • Mounting: Through-Hole
  • Case/Package: BR-L
  • Temperature Range: -55°C to 150°C
  • Quantity: 60 (Bulk)
