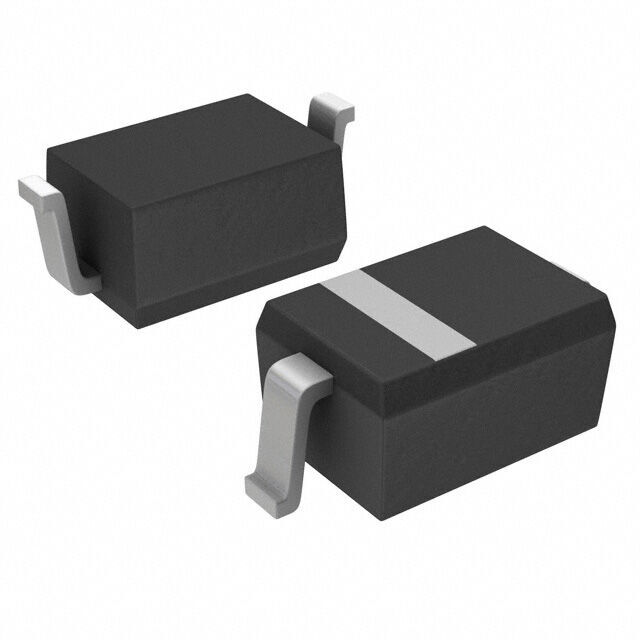

Same model may have multiple batches, images only for reference.
BAV21WS-HF Comchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BAV21WS-HF

Part No BAV21WS-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description Diode 250 V 200mA Surface Mount SOD-323
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Comchip Technology
Packaging Reel - TR
Technology Standard
Voltage - DC Reverse (Vr) (Max) 250 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 200 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 150°C
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1477861-BAV21WS-HF
Ultra Librarian 3D Model Ultra Librarian BAV21WS-HF CAD Model
