Same model may have multiple batches, images only for reference.

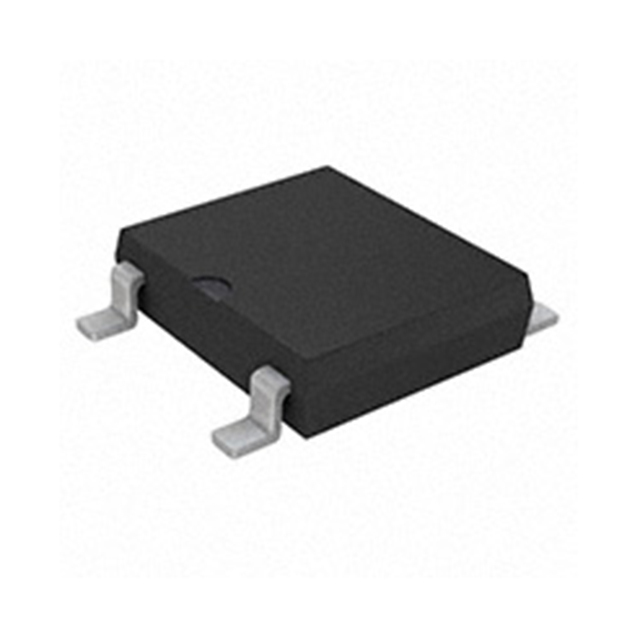

ABS10-HF Comchip Technology
Same model may have multiple batches, images only for reference.

ABS10-HF

Part No ABS10-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 1A ABS
Datasheet
ABS10-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number ABS10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367755-ABS10-HF
Ultra Librarian 3D Model Ultra Librarian ABS10-HF CAD Model

Description

The ABS10-HF is a bridge rectifier diode from Comchip Technology.

  • Mounting Type: Surface Mount
  • Package: 4-SMD, Gull Wing
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 1.1V @ 1A
  • Reverse Leakage Current: 5μA @ 1000V
  • Phase: Single-Phase
  • Peak Reverse Voltage: 1kV
  • Operating Temperature: -55°C to 150°C
