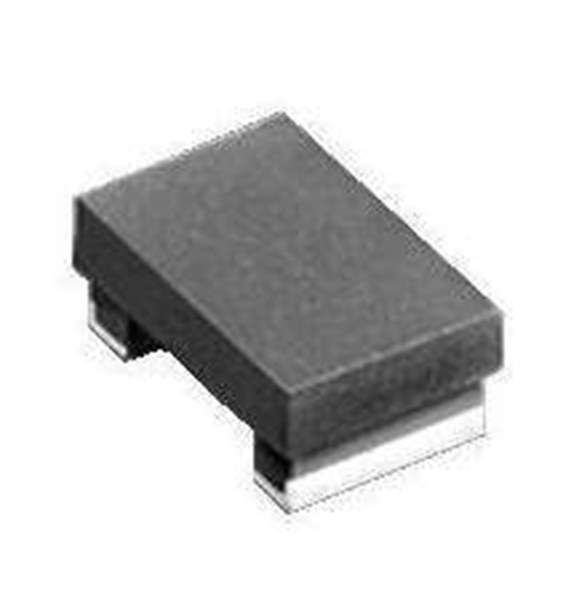

PFL1005-561MRW Coilcraft
Same model may have multiple batches, images only for reference.

PFL1005-561MRW

Part No PFL1005-561MRW
Manufacturer Coilcraft
Catalog Inductors, Coils, Chokes
Description Power Inductors - SMD 560nH Shld 20% 530mA 520mOhms
Datasheet
PFL1005-561MRW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Coilcraft
Category Power Inductors - SMD
Type Power Inductor
Package / Case 0.635 mm x 0.71 mm x 1.14 mm
Shielding Shielded
Inductance 560 nH
Tolerance 20 %
Max DC Current 530 mA
DC Resistance (DCR) (Max) 540 mOhms
Saturation Current 490 mA
Ultra Librarian 3D Model Ultra Librarian PFL1005-561MRW CAD Model

Description

  • Smallest power inductor – only 0.71 mm high, 1.14 x 0.635 mm footprint
  • Handles current up to 2800 mAmps
  • AEC-Q200 Grade 1 (–40°C to +125°C ambient)
