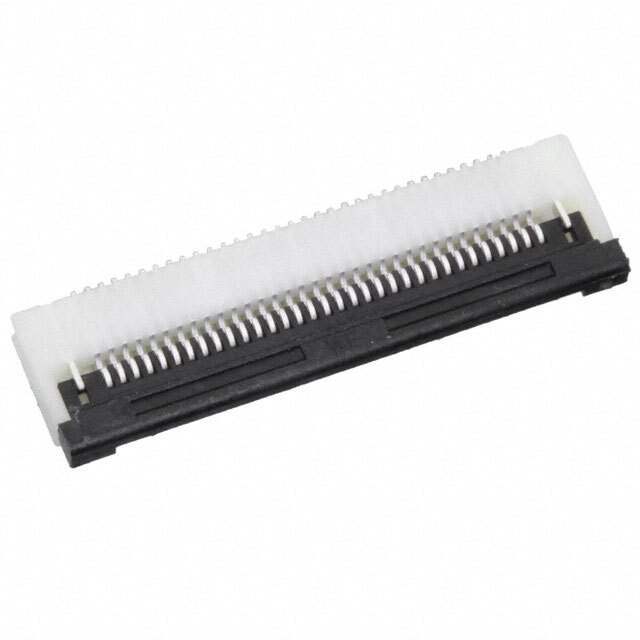

Same model may have multiple batches, images only for reference.

687133149022

Get a Quote

Part No	687133149022
Manufacturer	Wurth Electronics Inc
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 33POS 0.5MM R/A
Datasheet	687133149022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209211-687133149022
Manufacturer	Würth Elektronik
Category	Connectors, Interconnects- FFC, FPC (Flat Flexible) Connectors- FFC, FPC (Flat Flexible) Connector Assemblies
Package	Tape & Reel (TR) Cut Tape (CT)
Product Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	33
Pitch	0.020" (0.50mm)
Termination	Solder
Ultra Librarian 3D Model	Ultra Librarian 687133149022 CAD Model

Description

■ Flammability Rating: * UL94-VO
■ Contact Plating: 100u” Tin over 50u” Ni
■ Quality Class: 25 Mating Cycles
■ Operating Temp: - 25°C to +85°C
■ Compliance: Lead Free and RoHS
■ Current Rating: 1A
■ Working Voltage: 125V
■ UL Certified: E323964
■ Packaging: Tape and Reel
