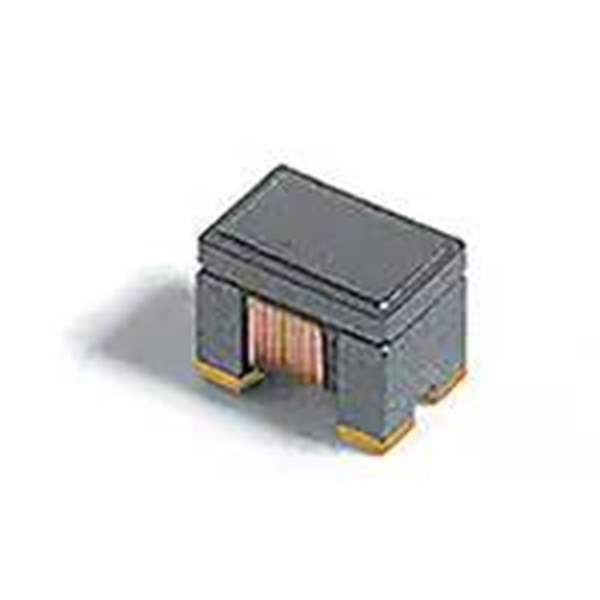

0805USB-172MLC Real Image
Same model may have multiple batches, images only for reference.

0805USB-172MLC

Part No 0805USB-172MLC
Manufacturer Coilcraft
Catalog Common Mode Chokes
Description CMC 84NH 500MA 2LN 640 OHM SMD
Datasheet
0805USB-172MLC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr COILCRAFT
Series 0805USB
Package Strip
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 640 Ohms @ 1.8 GHz
Inductance @ Frequency 84 nH @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 250mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height (Max) 0.065" (1.65mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 2354-0805USB-172MLC
Ultra Librarian 3D Model Ultra Librarian 0805USB-172MLC CAD Model

Description

0805USB-172MLC

Bring versatility to your USB-powered devices with the 0805USB-172MLC, engineered to accommodate efficient data and power applications within a compact footprint.

  • Applications:
    • USB hubs
    • Portable storage devices
    • Embedded systems
    • Consumer electronics
  • Features and Benefits:
    • Sturdy build supporting reliable USB connectivity
    • Miniature 0805 form factor for modern, compact designs
    • Optimized power distribution capabilities without data loss
    • Electrostatic discharge (ESD) protection benefits
  • Additional Details: Designed to support the latest USB standards, enhancing device interoperability and performance.
