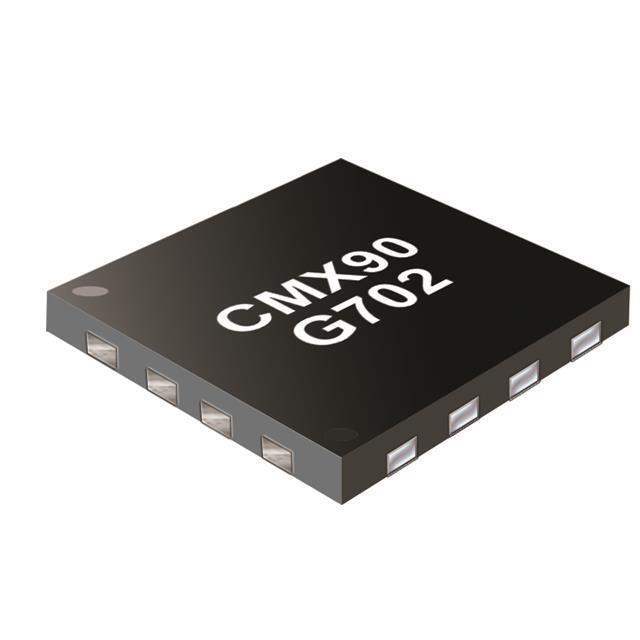

The CMX90G702 is a low-power 50 Ω gain block suitable for a wide variety of wireless applications operating in the 6 – 18 GHz frequency range.
The gain block has a positive gain-slope of +2dB across the 6 – 16 GHz band, eliminating the need for equalisation and compensates for increasing system losses with frequency.
CMX90G702 is highly integrated for ease of use, minimising external component count and board area. RF ports are matched on-chip to 50 Ω with an output DC-blocking capacitor. An active bias circuit with enable function, allows the device to operate over a wide supply voltage of 2V to 5V with typical current of 22 mA.
