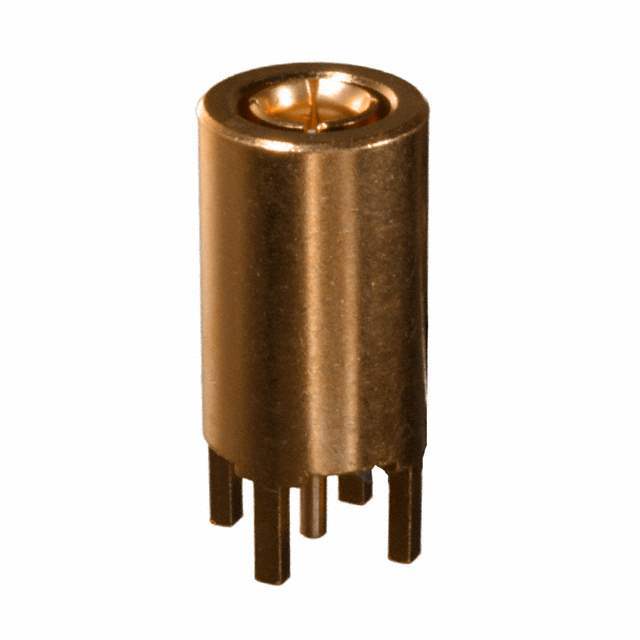

131-3801-201 Cinch Connectivity Solutions Johnson
Same model may have multiple batches, images only for reference.

131-3801-201

Part No 131-3801-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB PLUG STR 50 OHM PCB
Datasheet
131-3801-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209587-131-3801-201
Manufacturer Cinch Connectivity Solutions Johnson
Category Connectors, Interconnects- Coaxial Connectors (RF) -Coaxial Connector (RF) Assemblies
Package Bulk
Product Status Active
Connector Style SMB
Connector Type Plug, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 131-3801-201 CAD Model

Description

SMB Connector Plug, Female Socket 50 Ohms Through Hole Solder
