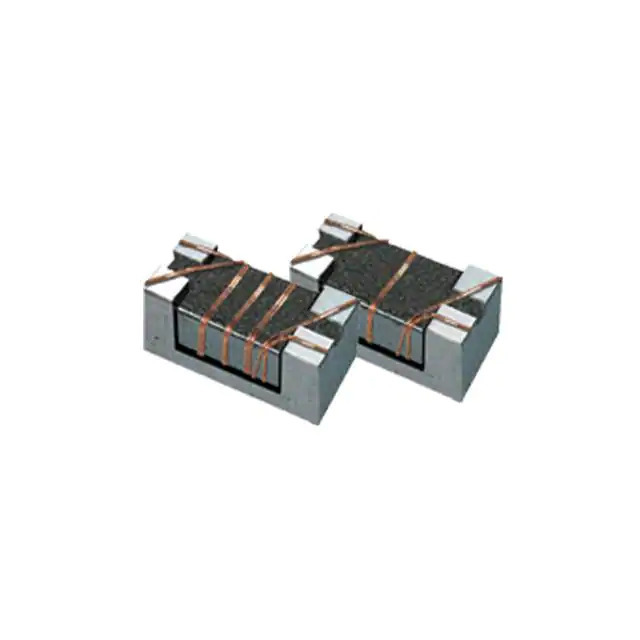

Same model may have multiple batches, images only for reference.
BWCU00201212750M02 Chilisin
Same model may have multiple batches, images only for reference.

BWCU00201212750M02

Part No BWCU00201212750M02
Manufacturer Chilisin
Catalog Common Mode Chokes
Description CMC 360MA 2LN 75 OHM SMD
Datasheet
BWCU00201212750M02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Chilisin Electronics
Series BWCU_02
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 75 Ohms @ 100 MHz
Current Rating (Max) 360mA
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 105°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369381-BWCU00201212750M02
Ultra Librarian 3D Model Ultra Librarian BWCU00201212750M02 CAD Model

Description

The BWCU00201212750M02 is a common mode choke manufactured by Chilisin Electronics.

  • Type: Signal Line Filter
  • Package Size: 0.081" L x 0.049" W (2.05mm x 1.25mm)
  • Temperature Range: -40°C to 105°C
  • Voltage Rating: 50V DC
  • Height: 0.055" (1.40mm)
  • Current Rating: 360mA
  • DC Resistance (DCR): 300mOhm
