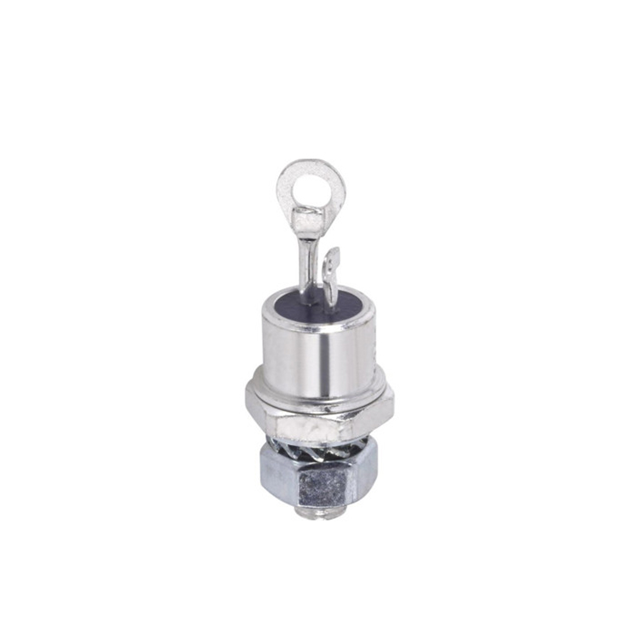

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Obsolete
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 40mA
Voltage - On State (Vtm) (Maximum) 2V
Current - On State (It (RMS)) (Maximum) 25A
Current - Hold (Ih) (Maximum) 100mA
Current - Off State (Maximum) 5mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A at 60Hz
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C
Mounting Style Chassis, Stud Mount
Manufacturer Package TO-208AA, TO-48-3, Stud
Supplier Device Package TO-48
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1124211-2N690
Manufacturer Homepage www.knoxsemiconductor.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 2N690 CAD Model

Description

The Central Semiconductor Corp 1124211-2N690 SCR is a standard recovery device with a voltage off state of 600V and a maximum current non-rep. surge 50, 60Hz (Itsm) of 200A @ 60Hz.

  • Voltage Off State: 600V
  • Maximum Current Non-Rep. Surge 50, 60Hz (Itsm): 200A @ 60Hz
  • Manufacturer Package: TO-208AA, TO-48-3, Stud
  • Mounting Style: Chassis, stud mount
  • Current On State (It (RMS)) (Maximum): 25A
  • Voltage Gate Trigger (Vgt) (Maximum): 2V
  • Current Gate Trigger (Igt) (Maximum): 40mA
  • Current Hold (Ih) (Maximum): 100mA
  • Voltage On State (Vtm) (Maximum): 2V
  • Current Off State (Maximum): 5mA
  • Supply and Demand Status: Limited
  • Applications: Used in industrial applications
