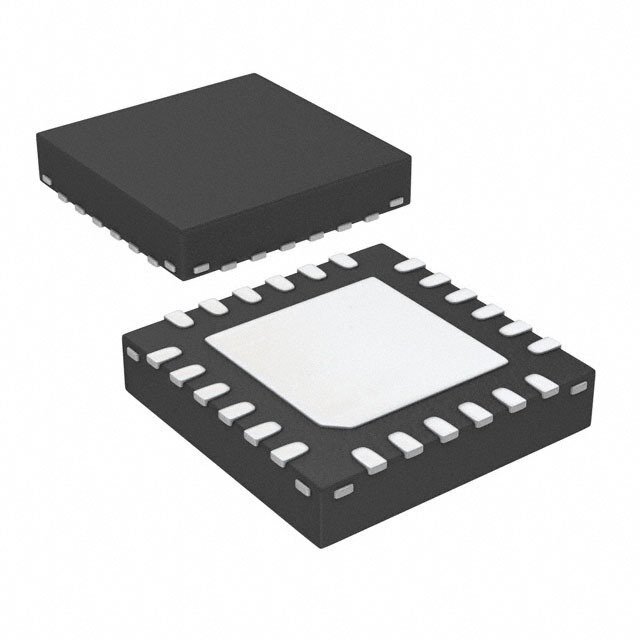

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer ams
Packaging Reel - TR
Status Active
Display Type LED
Configuration 8 x (7 Segment), 64 LED
Digits or Characters 8 Digits
Operating Supply Current 335mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 24-TQFN (4x4)
Win Source Part Number 078042-AMS1117
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AMS1117 CAD Model

Description

AMS1117 Voltage Regulator

The AMS1117 is a robust voltage regulator offering versatile capabilities with fixed output options of 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V, as well as an adjustable version. With a maximum output current of 1A, it is suitable for a wide range of applications.

  • Applications/Projects:
    • Low Voltage CPU Chipsets
    • Network Interface Cards
    • Handheld Devices
  • Features and Benefits:
    • Dropout voltage typically 1.3V at 1A output
    • High precision on output voltage
    • Good thermal stability and reliability
  • Additional Details:
    • Wide range of operating temperatures
    • Fully compatible with various electronic standards
