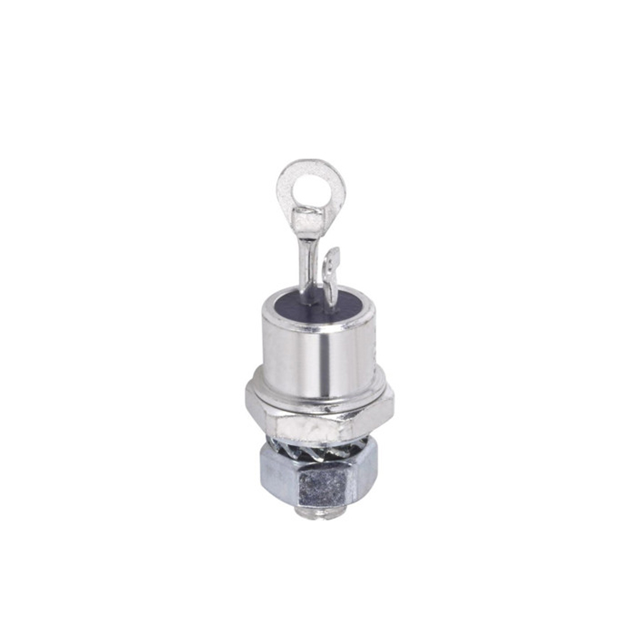

2N688 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Obsolete
Voltage - Off State 400V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 40mA
Voltage - On State (Vtm) (Maximum) 2V
Current - On State (It (RMS)) (Maximum) 25A
Current - Hold (Ih) (Maximum) 100mA
Current - Off State (Maximum) 8mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 200A at 60Hz
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C
Mounting Style Chassis, Stud Mount
Manufacturer Package TO-208AA, TO-48-3, Stud
Supplier Device Package TO-48
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1124209-2N688
Manufacturer Homepage www.knoxsemiconductor.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N688 CAD Model

Description

The 2N688 is a standard recovery SCR type with a voltage off state of 400V and a maximum on-state current of 25A.

  • Maximum Gate Trigger Voltage: 2V
  • Maximum Gate Trigger Current: 40mA
  • Maximum Holding Current: 100mA
  • Off-State Current: 8mA
  • Mounting Type: Chassis or stud
  • Temperature Range: -65°C to 125°C
  • Product Status: Obsolete
  • Supply and Demand Status: Limited
