2N5209 Central Semiconductor Corp

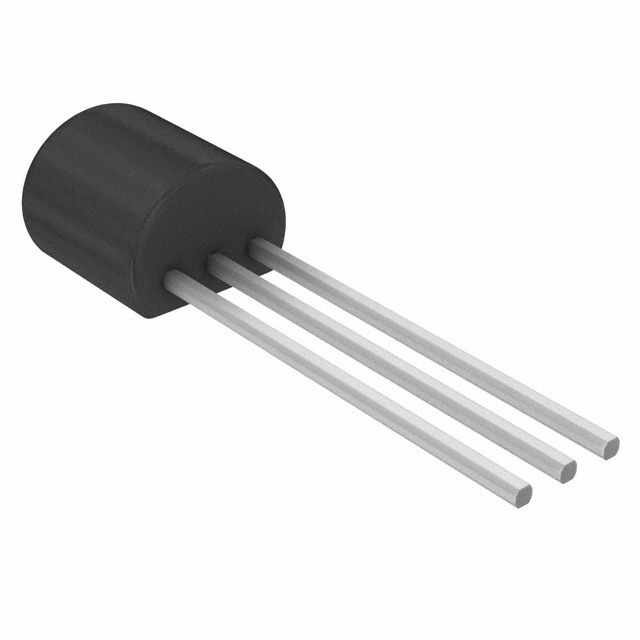

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) at Ib, Ic 700mV at 1mA, 10mA
Current - Collector Cutoff (Maximum) 50nA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 100 at 100μA, 5V
Maximum Power 350mW
Frequency - Transition 30MHz
Temperature Range - Operating -65°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package TO-92
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Win Source Part Number 1123940-2N5209
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N5209 CAD Model

Description

The 2N5209 is a NPN transistor from Central Semiconductor Corp that comes in a TO-92-3 (TO-226AA) package.

  • Transistor Type: NPN
  • Package: TO-92-3 (TO-226AA)
  • Maximum Collector Current: 50mA
  • Maximum Voltage: 50V
  • Frequency Transition: 30MHz
  • DC Current Gain (hFE): 100 @ 100μA and 5V
  • Vce Saturation (Maximum) @ Ib, Ic: 700mV @ 1mA, 10mA
  • Maximum Power: 350mW
  • Application: Discrete semiconductor products
  • Operating Temperature: -65°C to 150°C
  • Package: Bulk
  • Popularity: Medium
  • Supply and Demand: Limited
  • Manufacturer Package: TO-226-3, TO-92-3 (TO-226AA)
