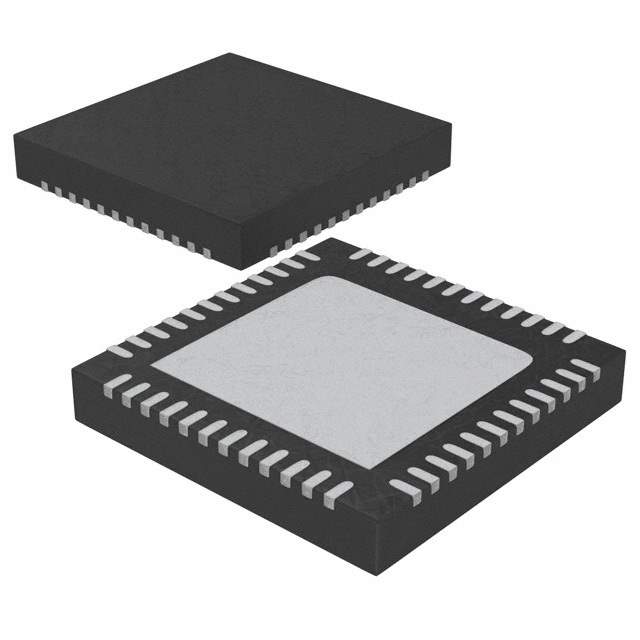

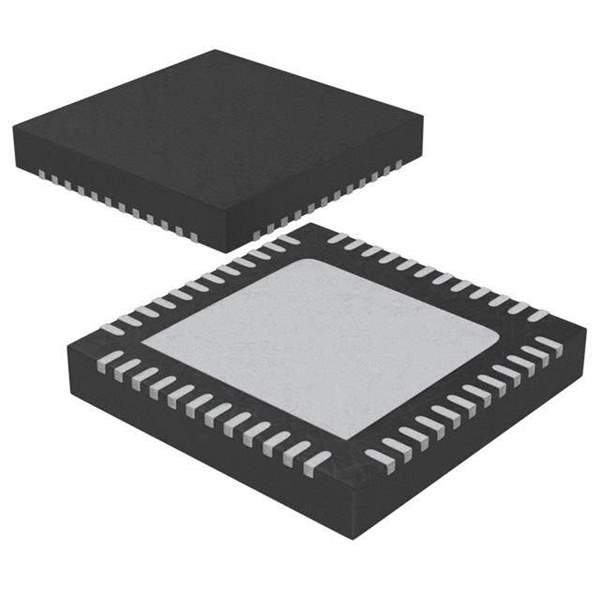

THL3504 Real Image
Same model may have multiple batches, images only for reference.

THL3504

Part No THL3504
Manufacturer CEL
Catalog PMIC - LED Drivers
Description IC LED DRVR PS 24CH 40MA 48QFN / 24-channel Constant Current LED Driver with LVDS Interface
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CEL
Packaging Reel
Type Power Switch
Internal Switch(s) Yes
Number of Outputs 24
Voltage - Supply (Min) 3V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 35V
Current - Output / Channel 40mA
Frequency 10MHz
Applications Backlight, Signage
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 48-VFQFN Exposed Pad
Supplier Device Package 48-QFN (7x7)
Manufacturer Pack Quantity 2,600
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803255-THL3504
Ultra Librarian 3D Model Ultra Librarian THL3504 CAD Model

Description

The CEL 803255-THL3504 is a power switch used in backlight and signage applications.

  • Outputs: 24
  • Supplier Device Package: 48-QFN (7x7)
  • Output Voltage: 35V
  • Operating Frequency: 10MHz
  • Current Output per Channel: 40mA
  • Internal Switches: Yes
  • Supply and Demand Status: Balanced
