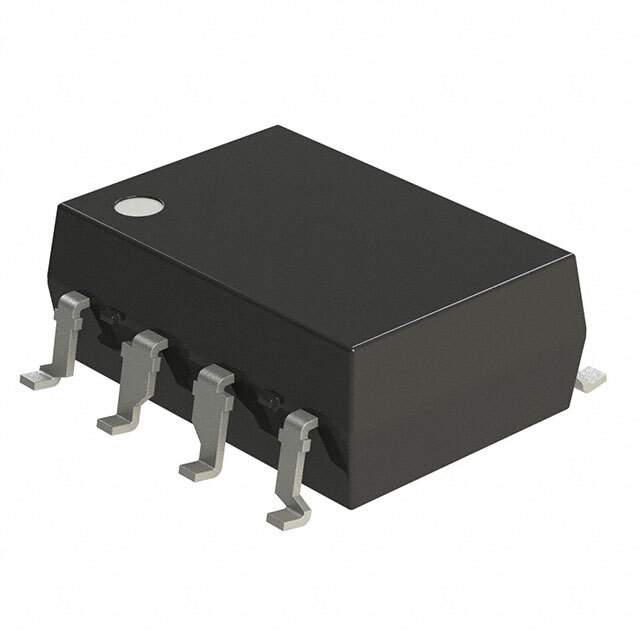

PS9513L2-AX Real Image
Same model may have multiple batches, images only for reference.

PS9513L2-AX

Part No PS9513L2-AX
Manufacturer CEL
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV OPEN COLL 8DIP GW / Optocoupler Logic-Out Open Collector DC-IN 1-CH 8-Pin PDIP SMD Magazine
Datasheet
PS9513L2-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 15kV/μs
Input Type DC
Output Type Open Collector
Output Current per Channel 15mA
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Maximum) 750ns, 500ns
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Maximum) 25mA
Operating Supply Voltage 4.5 V ~ 20 V
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 8-SMD, Gull Wing
Manufacturer Package 8-DIP Gull Wing
Win Source Part Number 792578-PS9513L2-AX
Popularity Medium
Supply and Demand Status Limited
Family Name PS9513L2
Introduction Date November 12, 2008
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PS9513L2-AX CAD Model

Description

The CEL PS9513L2 series 792578-PS9513L2-AX is an isolator that belongs to the isolators category. CEL.

  • Package: 8-SMD, Gull Wing
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: SMD
  • Output Type: Open Collector
  • Data Rate: 1Mbps
  • Input Type: DC
  • Voltage Rating: 5000Vrms
  • Current Rating: 15mA per channel
  • Supply and Demand Status: Limited
