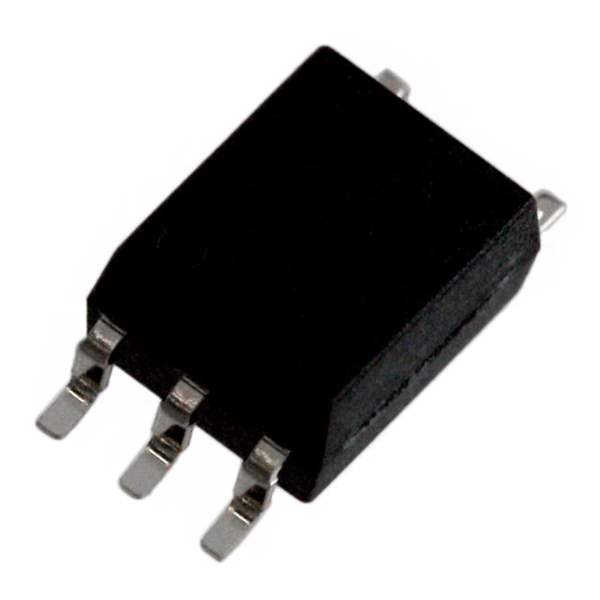

TLP2361(V4-TPR,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

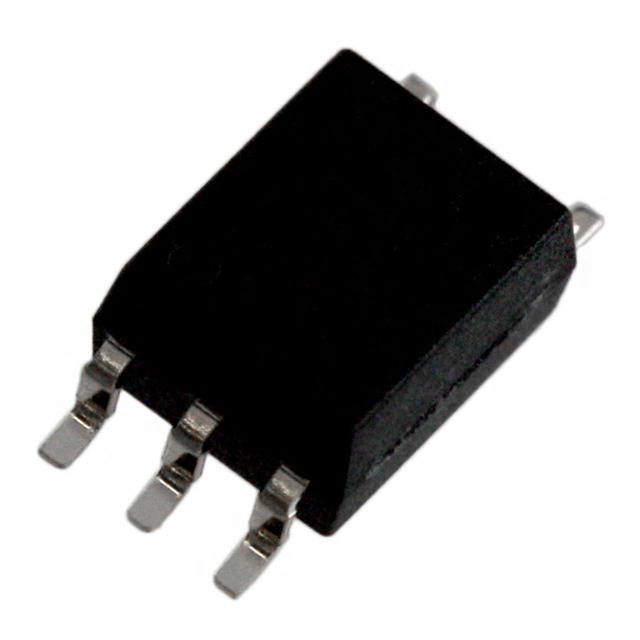

TLP2361(V4-TPR,E

Part No TLP2361(V4-TPR,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description 15MBPS HIGH SPEED COUPLER; VDE;
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba Semiconductor and Storage
Packaging Reel
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Input Type AC, DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Maximum) 80ns, 80ns
Rise / Fall Time (Typ) 3ns, 3ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Maximum) 10mA
Supply Voltage (V) 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-SOIC (0.179", 4.55mm Width), 5 Leads
Supplier Device Package 6-SO, 5 Lead
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810554-TLP2361(V4-TPR,E
Ultra Librarian 3D Model Ultra Librarian TLP2361(V4-TPR,E CAD Model

Description

The Toshiba Semiconductor and Storage 810554-TLP2361(V4-TPR,E is a push-pull, totem pole output type optocoupler with a data rate of 15MBd. It has a voltage isolation of 3750Vrms and a common mode transient immunity (Min) of 20kV/μs.

  • Rise/Fall Time (Typ): 3ns, 3ns
  • Input Type: AC, DC
  • Package: 6-SO, 5 Lead
  • Operating Temperature: -40°C ~ 125°C
  • Applications: Power Supplies, Motor Control, Digital Logic Inputs
