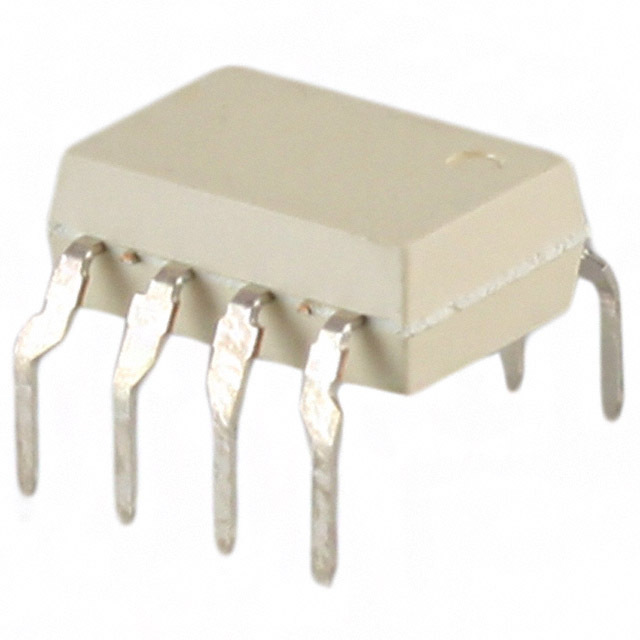

PS9505L1-AX CEL
Same model may have multiple batches, images only for reference.

PS9505L1-AX

Part No PS9505L1-AX
Manufacturer CEL
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV GATE DRIVER 8DIP
Datasheet
PS9505L1-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Cut Strip
Status Active
Technology Optical Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Propagation Delay tpLH / tpHL (Max) 250ns, 250ns
Pulse Width Distortion (Max) 100ns
Rise and Fall Time 50ns, 50ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Forward Voltage 1.56V
Continuous forward current- Max 25mA
Supply Voltage - Operating 15 V to 30 V
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Case / Package 8-DIP
Approvals CSA, SEMKO, UL
Win Source Part Number 1090237-PS9505L1-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS9505L1-AX CAD Model

Description

The PS9505L1-AX is an optical coupling relay manufactured by CEL.

  • Common Mode Transient Immunity (Min): 25kV/μs
  • Packaging: 8-DIP
  • Mounting Type: Through Hole
  • Propagation Delay tpLH / tpHL (Max): 250ns
  • Current Output High: 2A
  • Current Output Low: 2A
  • Forward Voltage: 1.56V
  • Channel: Single
  • Product Status: Active
