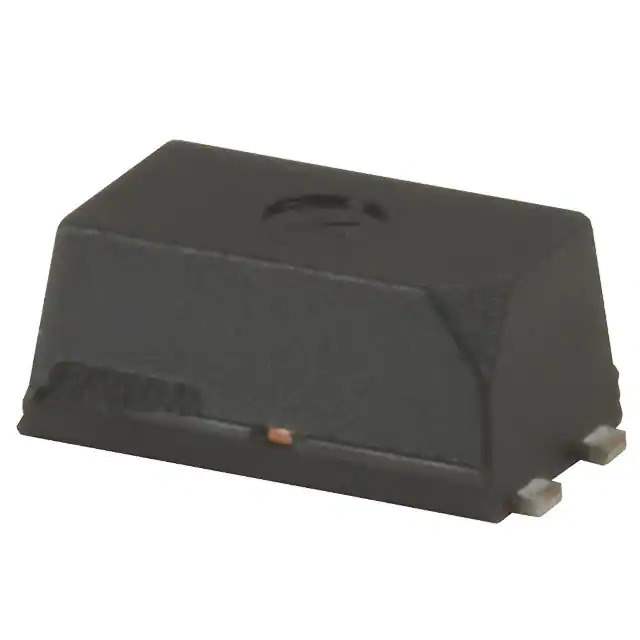

PS7801K-1A-A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.1VDC
Voltage - Load 0 V ~ 80 V
Load Current 40 mA
On-State Resistance (Max) 25 Ohms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.165", 4.20mm)
Supplier Device Package 4-Ultra Small Flatlead
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 890231-PS7801K-1A-A
Ultra Librarian 3D Model Ultra Librarian PS7801K-1A-A CAD Model

Description

The PS7801K-1A-A is a solid state relay from CEL's PS series.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 25 Ohms
  • Load Current: 40 mA
  • Voltage Load: 0 V to 80 V
  • Voltage Input: 1.1VDC
  • Output Type: AC and DC
  • Mounting Type: Surface Mount
  • Package: 4-SMD
  • Packaging: Tube
  • Standard Package: 100 pcs
  • Part Status: Obsolete
