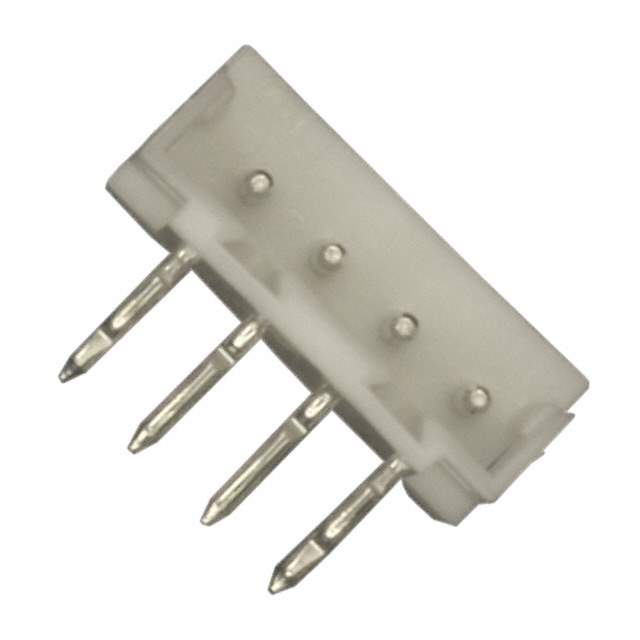

292253-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.157" (4.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292253
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292253-4-SI,2922534,A98576,2266-292253-4
Standard Package 1,000
Win Source Part Number 1116270-292253-4
Ultra Librarian 3D Model Ultra Librarian 292253-4 CAD Model

Description

The TE Connectivity AMP Connectors CT series rectangular connector is a high-quality product designed for use in general-purpose applications. TE Connectivity AMP Connectors manufactures the CT series.

  • Positions: 4
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Mounting: Through-Hole, Right-Angle
  • Pitch-Mating: 0.079" (2.00mm)
  • Contact Finish-Mating: Tin
  • Contact Length-Post: 0.126" (3.20mm)
  • Contact Length-Mating: 0.177" (4.50mm)
