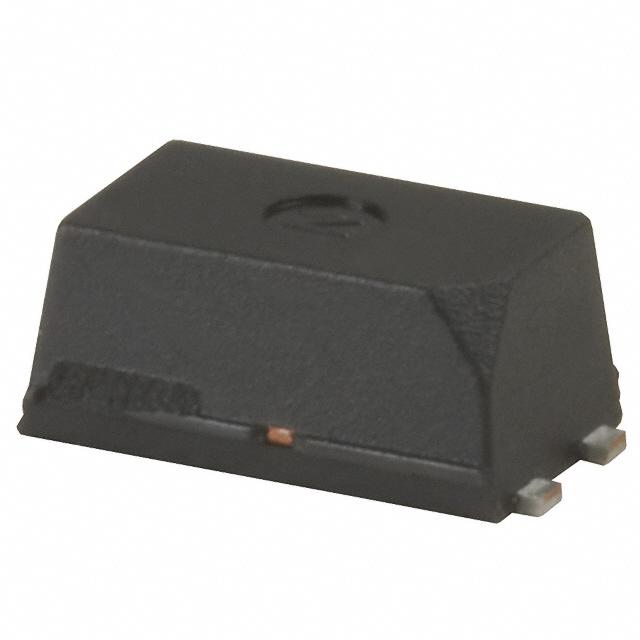

PS7801C-1A-A CEL
Same model may have multiple batches, images only for reference.

PS7801C-1A-A

Part No PS7801C-1A-A
Manufacturer CEL
Catalog Solid State Relays
Description SSR OCMOS FET 80MA NO 4-USFL
Datasheet
PS7801C-1A-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 17 Ohm
Load Current 80mA
Voltage - Input 1.10VDC
Voltage - Load 0 to 30 V
Mounting SMD (SMT)
Termination Style SMD (SMT) Tab
Case / Package 4-Ultra Small Flatlead
Relay Type Relay
Win Source Part Number 1090190-PS7801C-1A-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS7801C-1A-A CAD Model

Description

The CEL 1090190-PS7801C-1A-A is a relay type component that operates at a voltage input of 1.10VDC and has an output type of AC/DC.

  • Voltage Input: 1.10VDC
  • Output Type: AC/DC
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 80mA
  • Voltage Load: 0 to 30 V
  • Maximum On Resistance: 17 Ohm
  • Package: 4-Ultra Small Flatlead
  • Lifecycle Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
