PS2841-4B-AX CEL
Same model may have multiple batches, images only for reference.

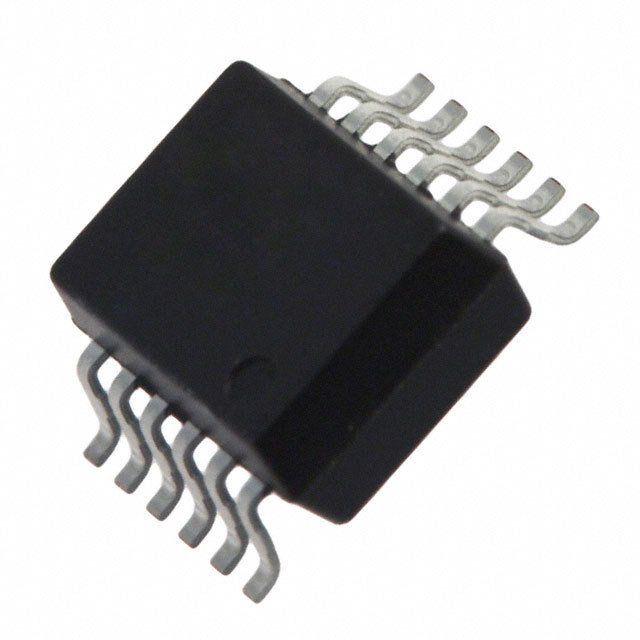

PS2841-4B-AX

Part No PS2841-4B-AX
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 1.5KV 4CH TRANS 12BSOP
Datasheet
PS2841-4B-AX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Bulk
Status Active
Number of Channels 4
Isolation Voltage 1500Vrms
Minimum DC Current Transfer Ratio 100% @ 1mA
Maximum DC Current Transfer Ratio 400% @ 1mA
Rise and Fall Time 20μs, 110μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 20mA
Forward Voltage 1.1V
Continuous forward current- Max 20mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 12-SSOP
Win Source Part Number 1090066-PS2841-4B-AX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2841-4B-AX CAD Model

Description

The CEL PS2841-4B-AX is an optically coupled isolator with a transistor output.

  • Output: Transistor
  • DC Current Transfer Ratio (Min) @ Current: 100% @ 1mA
  • DC Current Transfer Ratio (Max) @ Current: 400% @ 1mA
  • Vce Saturation: 300mV
  • Isolation Voltage: 1500Vrms
  • Forward Voltage: 1.1V
  • Mounting Package: 12-SSOP
  • Rise Time: 20μs
  • Fall Time: 110μs
  • Output Voltage (Max): 70V
  • Channel Output Current: 20mA
  • Continuous Forward Current (Max): 20mA
  • Operating Temperature Range: -40°C to 100°C
