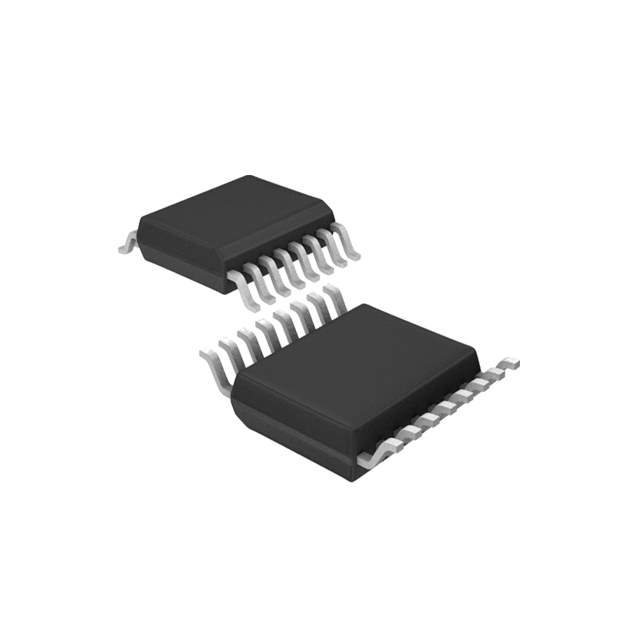

PS2806-4-A Real Image
Same model may have multiple batches, images only for reference.

PS2806-4-A

Part No PS2806-4-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 2.5KV 4CH DARL 16SOIC
Datasheet
PS2806-4-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 200% @ 1mA
Rise and Fall Time 200μs, 200μs
Input Type AC, DC
Output Type Darlington
Maximum Output Voltage 40V
Channel Output Current 100mA
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -55°C to 100°C
Mounting SMD (SMT)
Case / Package 16-SOP
Win Source Part Number 1090055-PS2806-4-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2806-4-A CAD Model

Description

The CEL 1090055-PS2806-4-A is a 4-channel Darlington output optoisolator that is designed to provide electrical isolation between two circuits.

  • Minimum DC Current Transfer Ratio: 200% @ 1mA
  • Maximum Output Voltage: 40V
  • Continuous Forward Current-Max: 50mA
  • Mounting: 16-SOP package
