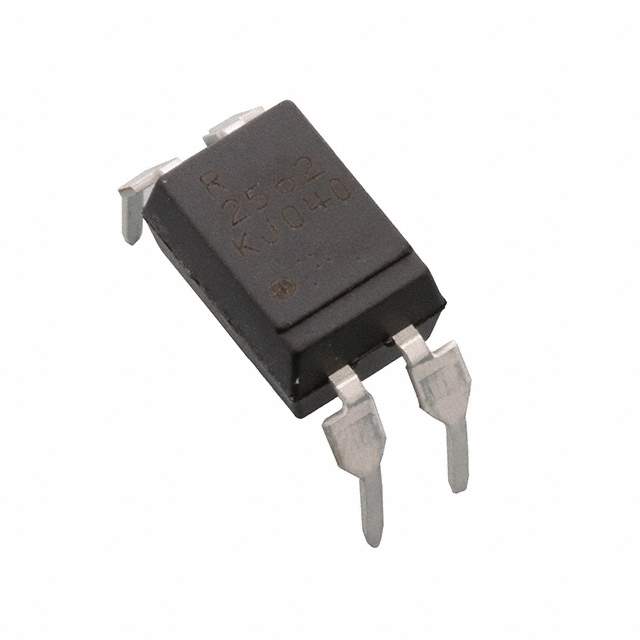

PS2561AL1-1-L-A Real Image
Same model may have multiple batches, images only for reference.

PS2561AL1-1-L-A

Part No PS2561AL1-1-L-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP
Datasheet
PS2561AL1-1-L-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 3μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 30mA
Forward Voltage 1.2V
Continuous forward current- Max 30mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 128934-PS2561AL1-1-L-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2561AL1-1-L-A CAD Model

Description

The PS2561AL1-1-L-A is an electronic component manufactured by CEL.

  • Packaging: Tube/Rail
  • Mounting Type: Through-Hole
  • Output Type: Transistor
  • Forward Voltage: 1.2V
  • Channel Count: 1
  • Input Type: DC
  • Vce saturation (max): 300mV
  • Isolation Voltage: 5000Vrms
  • Category: Isolators
  • Status: Active
  • Temperature Range: -55°C to 100°C
  • Case/Package: 4-DIP
  • Minimum DC Current Transfer Ratio: 200% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Switching Turn-On and Turn-Off Time: Not Specified
  • Rise and Fall Time: 3μs, 5μs
  • Maximum Output Voltage: 70V
  • Channel Output Current: 30mA
  • Continuous Forward Current-Max: 30mA
  • Supply and Demand Status: Balanced
