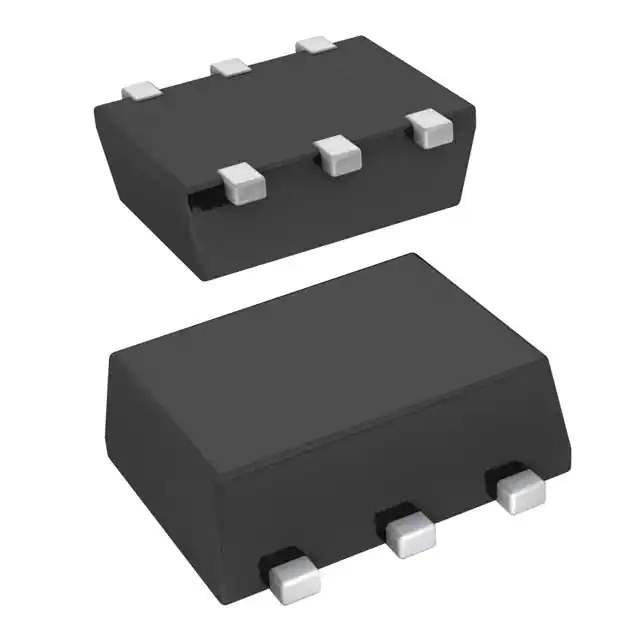

CG2409M2-C4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr CEL
Package Tape & Reel
Product Status Active
RF Type 802.11a/b/g/n/ac
Circuit SPDT
Frequency Range 50MHz ~ 3.8GHz
Isolation 21dB
Insertion Loss 0.5dB
Test Frequency 3GHz
IIP3 62dBm
Impedance 50Ohm
Voltage - Supply 1.8V ~ 5V
Temperature Range - Operating -45°C ~ 85°C
Package / Case 6-VSSOP, SC-88, SOT-363
Supplier Device Package 6-Minimold
Base Product Number CG2409
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 849346-CG2409M2-C4
Ultra Librarian 3D Model Ultra Librarian CG2409M2-C4 CAD Model

Description

The 849346-CG2409M2-C4 is an RF switch designed for applications in the RF and Wireless category.

  • Circuit: SPDT
  • Frequency Range: 50MHz to 3.8GHz
  • Insertion Loss: 0.5dB
  • Isolation: 21dB
  • Impedance: 50Ohm
  • Applications: 802.11a/b/g/n/ac RF systems
  • Voltage Supply Range: 1.8V to 5V
  • Package: 6-VSSOP, SC-88, SOT-363
  • Packaging: tape and reel
  • Standard Package: 10,000 pieces
  • Operating Temperature Range: -45°C to 85°C
  • Status: active
  • Manufacturer: CEL
