Same model may have multiple batches, images only for reference.

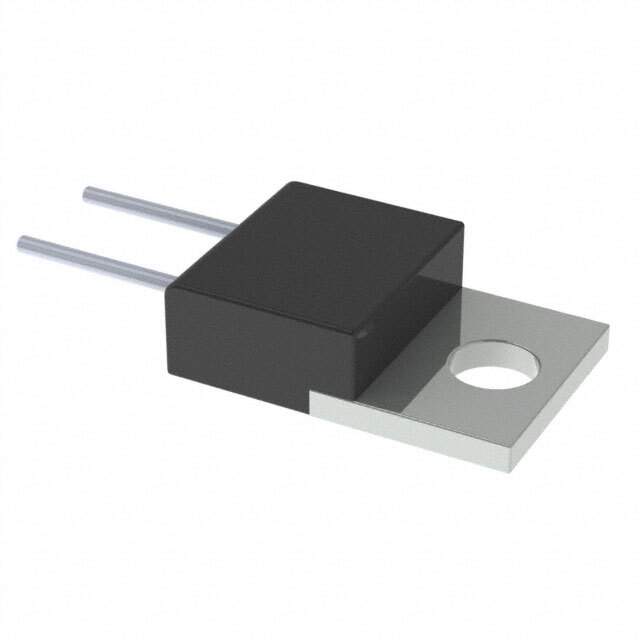

MP820-10.0-1% Real Image
Same model may have multiple batches, images only for reference.

MP820-10.0-1%

Part No MP820-10.0-1%
Manufacturer Caddock Electronics Inc.
Catalog Through Hole Resistors
Description RES 10 OHM 1% 20W TO220 / 10 Ohms ±1% 20W Through Hole Resistor TO-220-2 Full Pack Moisture Resistant, Non-Inductive Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Caddock Electronics Inc.
Series Kool-Pak®MP800
Package Tube
Resistance 10 Ohms
Tolerance ±1%
Power (Watts) 20W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient -20/ +50ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220
Dimension 0.400" L x 0.175" W (10.16mm x 4.45mm)
Height - Seated (Max) 0.590" (14.99mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names REFMP820-10.0-1%,MP820-10.0F
Standard Package 50
Win Source Part Number 1080037-MP820-10.0-1%
Ultra Librarian 3D Model Ultra Librarian MP820-10.0-1% CAD Model

Description

This resistor is part of the Kool-Pak®MP800 series and is categorized under Resistors>Through Hole Resistors.

  • Feature: moisture-resistant and non-inductive
  • Tolerance: ±1%
  • Package: 50 pieces
  • Power Rating: 20W
  • Resistance: 10 Ohms
  • Package/Case: TO-220-2 Full Pack
  • Manufacturer: Caddock Electronics Inc.
  • Alternative Parts (cross-reference): 2-1623809-9, TBH25P100RJE, MPR20C100RJ, AP851100RF, and TCH35P100RJE
