Same model may have multiple batches, images only for reference.

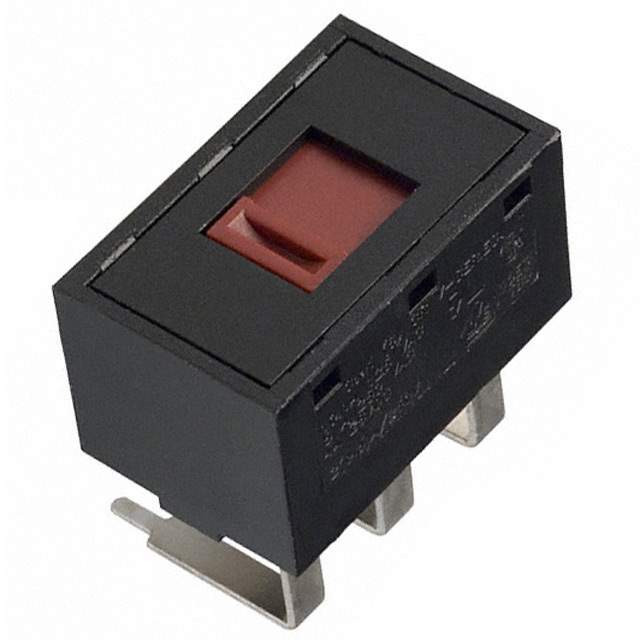

V80213MA08Q Real Image
Same model may have multiple batches, images only for reference.

V80213MA08Q

Part No V80213MA08Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 10A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer C&K
Packaging Tray
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 10A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper
Contact Finish Silver
Mounting Style Through Hole, Right Angle
Termination Style PC Pin
Features No Marking
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polyester, Glass Filled
Electrical Life 10,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813516-V80213MA08Q
Ultra Librarian 3D Model Ultra Librarian V80213MA08Q CAD Model

Description

The C&K 813516-V80213MA08Q is a DPDT circuit switch.

  • Voltage Rating: 125V AC and 30V DC
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Polyester and glass filled
  • Mounting: Surface mount
  • Actuator Type: Screwdriver slot
  • Switch Function: on-on
  • Actuator Length: Flush
  • Electrical Life: 10,000 cycles
  • Operating Temperature Range: -30°C to 85°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Current Rating: 10A (AC), 4A (DC)
