Same model may have multiple batches, images only for reference.

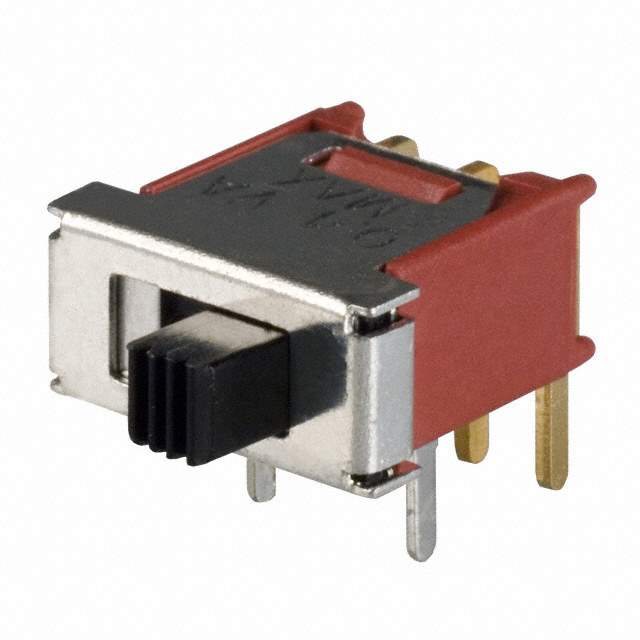

TS01ABE Real Image
Same model may have multiple batches, images only for reference.

TS01ABE

Part No TS01ABE
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 0.4VA 20V
Datasheet
TS01ABE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Slide Switch SPDT Through Hole, Right Angle
Manufacturer C&K Components
Series TS
Package Bulk
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name TS01
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number *TS01ABE, CKC5120, TS01ABE-ND, Q7562539, 2266-TS01ABE
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901138-TS01ABE
Ultra Librarian 3D Model Ultra Librarian TS01ABE CAD Model

Description

The C&K Components TS01 series slide switch is a high-quality and durable solution for electronic applications.

  • Operating Temperature Range: -30°C to 85°C
  • Switch Type: SPDT
  • Mounting Type: Through-hole, right-angle
  • Package: Bulk
  • Quantity: One switch
  • Category: Switches
  • ECCN: EAR99
  • Estimated Production Lead Time: 9 weeks
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.50.9050
