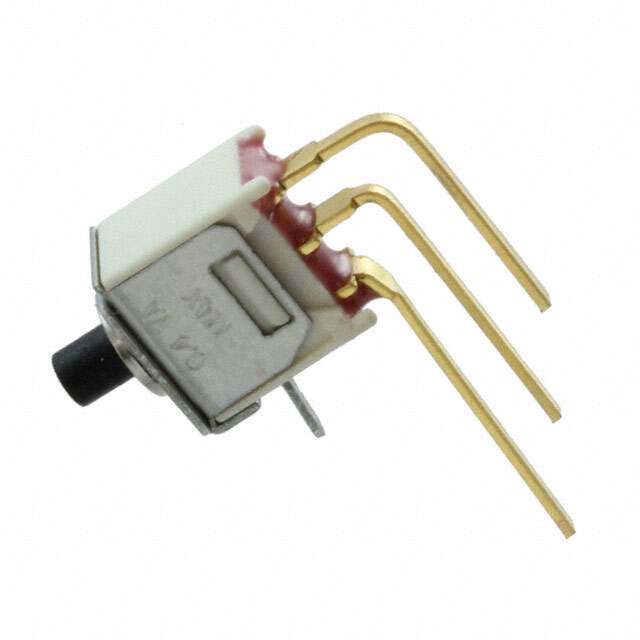

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 9 Weeks
Features Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
Manufacturer C&K Components
Series TP
Package Tray
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole, Right Angle, Vertical
Family Name TP12M
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number TP12MS9AVBE-ND, -TP12MS9AVBE, 2266-TP12MS9AVBE, CKN11148, *TP12MS9AVBE
Quantity per package 80
Popularity High
Supply and Demand Status Balance
Win Source Part Number 900571-TP12MS9AVBE
Ultra Librarian 3D Model Ultra Librarian TP12MS9AVBE CAD Model

Description

The C&K TP12MS9AVBE switch is a pushbutton switch with SPDT circuit.

  • Mounting: Standard through hole, right angle and vertical mounted
  • Family: TP12M family
  • Operating Temperature Range: -30°C ~ 85°C
  • Popularity: High
  • Supply and Demand Status: Balanced
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Affected
  • Estimated Production Lead Time: 9 weeks
  • HTSUS: 8536.50.9031
  • Other part numbers: TP12MS9AVBE-ND, -TP12MS9AVBE, 2266-TP12MS9AVBE, CKN11148, *TP12MS9AVBE
