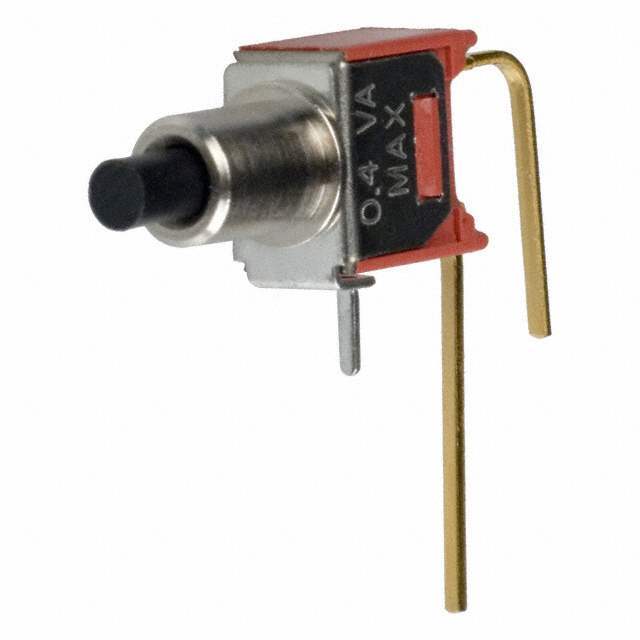

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1203699-TP11SH8AVBE
Manufacturer C&K
Category Switches -Pushbutton Switches
Category TP
Package Tray
Product Status Active
Mounting Type Through Hole, Right Angle, Vertical
Type Standard
Actuator Type Round, Plunger
Operating Temperature -30°C ~ 85°C
Electrical Life 60,000 Cycles
Ultra Librarian 3D Model Ultra Librarian TP11SH8AVBE CAD Model

Description

Features/Benefits • Subminiature size—capable of switching 1 AMP<br /> • Vertical & right angle terminations • PC & panel mount models • Snap-in front panel mounting available • Epoxy terminal seal-compatible with bottom wash cleaning • RoHS compliant models available
