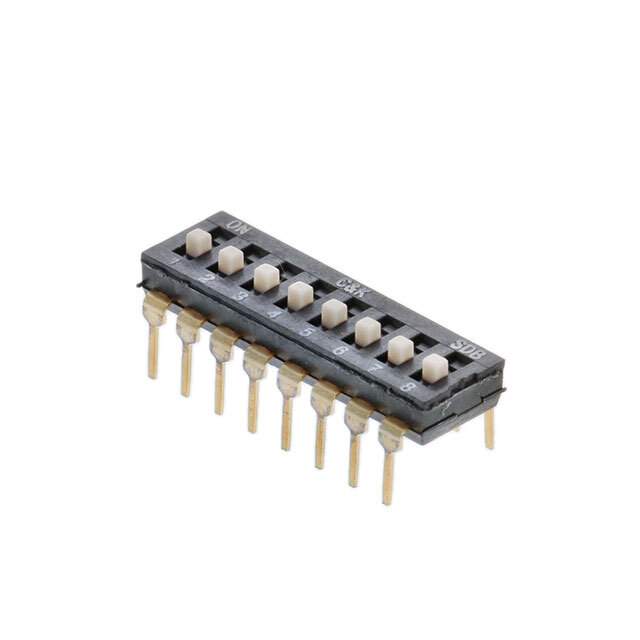

SDB08H1BD Real Image
Same model may have multiple batches, images only for reference.

SDB08H1BD

Part No SDB08H1BD
Manufacturer C&K Components
Catalog DIP Switches
Description DIP 8P EXTENDED ACT. GOLD CONTAC / Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDB
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.179" (4.55mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA46), Nylon 4/6
Length 0.843" (21.41mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names 2266-SDB08H1BD,CKN12004
Standard Package 22
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233705-SDB08H1BD
Ultra Librarian 3D Model Ultra Librarian SDB08H1BD CAD Model

Description

The SDB DIP switch is a high-quality switch designed for use in a variety of electronic devices.

  • Manufacturer:
  • Actuator: Slide
  • Voltage Rating: 24V DC
  • Circuit Configuration: SPST
  • Number of Positions: 8
  • Termination Style: PC pin
  • Mounting: Through hole
  • Temperature Range: -40°C to 85°C
  • Package: Tube package of 22
