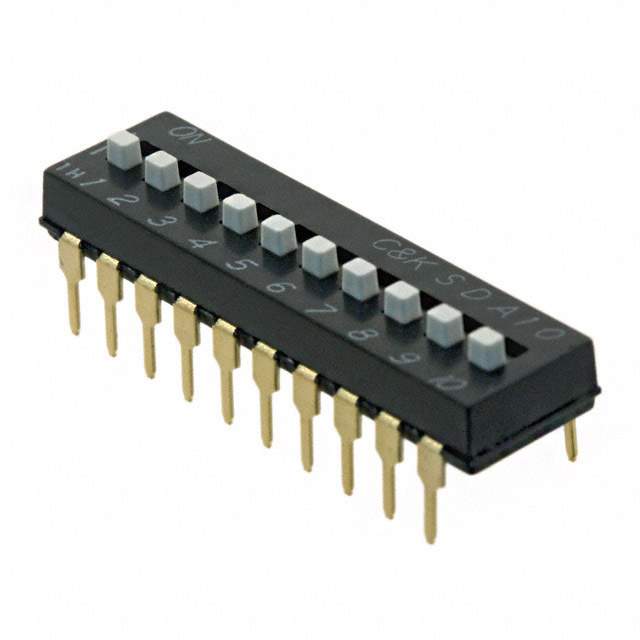

SDA10H1BD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 1.076" (27.34mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA10H
Other Names CKN6102,*SDA10H1BD
Standard Package 15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233776-SDA10H1BD
Ultra Librarian 3D Model Ultra Librarian SDA10H1BD CAD Model

Description

The C&K SDA series DIP switch is a SPST circuit with a slide actuator type.

  • Manufacturer: C&K
  • Series: SDA
  • Circuit: SPST
  • Actuator Type: Slide
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination: PC Pins
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Contact Finish: Gold
  • Mechanical Life: 1,000 Cycles
  • Electrical Life: 1,000 Cycles
  • Temperature Range: -40°C to 85°C
  • Mounting: Through Hole
  • Height Above Board: 0.228" (5.80mm)
  • Packaging: Tube
  • Contact Material: Beryllium Copper
  • Body Material: Polyphenylene Sulfide (PPS)
  • Actuator Level: Raised
  • Washable: No
  • ECCN: EAR99
