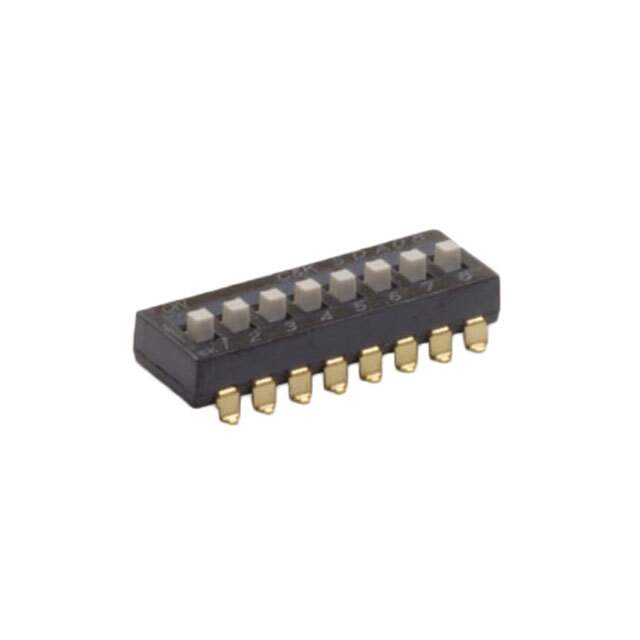

SDA08H1SBDR Real Image
Same model may have multiple batches, images only for reference.

SDA08H1SBDR

Part No SDA08H1SBDR
Manufacturer C&K Components
Catalog DIP Switches
Description DIP SWITCH SMD 8 POS SLIDE / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA08H1SBDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tape & Reel
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.876" (22.26mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA08H
Other Names 2266-SDA08H1SBDR,CKN12291-6,CKN12291-2,CKN12291-1
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233784-SDA08H1SBDR
Ultra Librarian 3D Model Ultra Librarian SDA08H1SBDR CAD Model

Description

The SDA08H1SBDR from C&K is a DIP switch that has 8 positions and a pitch of 0.100" (2.54mm), full.

  • Manufacturer: C&K
  • Positions: 8
  • Pitch: 0.100" (2.54mm), full
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Contact Material: Beryllium Copper
  • Contact Finish: Gold
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
  • Actuator Level: Raised
  • Washable: No
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
