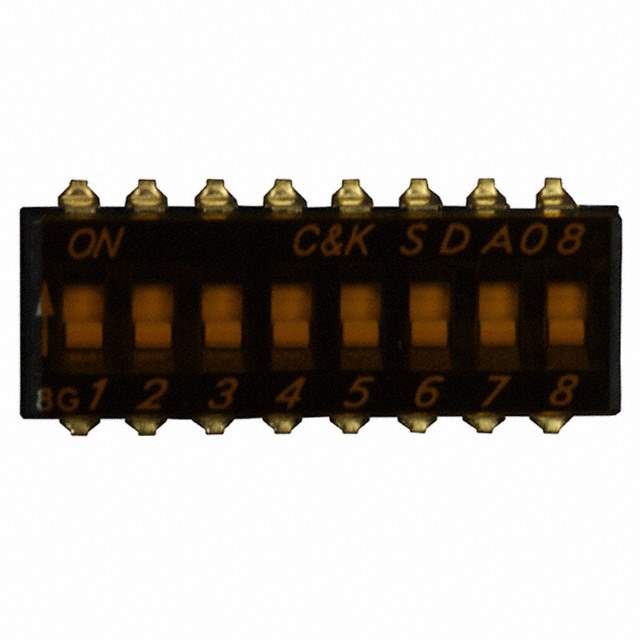

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.876" (22.26mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA08H
Other Names CKN6089,*SDA08H0SB,2266-SDA08H0SB
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233757-SDA08H0SB
Ultra Librarian 3D Model Ultra Librarian SDA08H0SB CAD Model

Description

The SDA08H0SB is an 8-position SPST DIP switch from C&K.

  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 24VDC
  • Contact Finish: Gold
  • Body Material: Polyphenylene Sulfide (PPS)
  • Washable: Yes
  • Temperature Range: -40°C to 85°C
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Seal: Tape Sealed
  • Package: Tube package of 20
