Same model may have multiple batches, images only for reference.

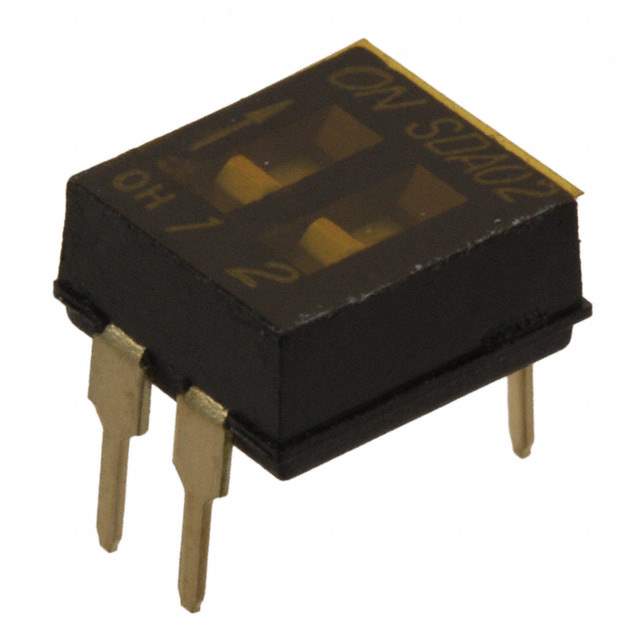

SDA02H0B Real Image
Same model may have multiple batches, images only for reference.

SDA02H0B

Part No SDA02H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA02H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.183" (4.65mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA02H
Other Names *SDA02H0B,2266-SDA02H0B,CKN6051
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233770-SDA02H0B
Ultra Librarian 3D Model Ultra Librarian SDA02H0B CAD Model

Description

The C&K SDA02H0B is a DIP switch with 2 positions and a pitch of 0.100 inches.

  • Termination Style: PC pin
  • Seal: Tape sealed
  • Contact Finish: Gold
  • Contact Material: Beryllium copper
  • Circuit: SPST
  • Actuator Type: Flush, recessed
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Washable: Yes
  • Mechanical Life: 1000 cycles
  • Package: Tube
  • Standard Package: 60
  • Material: Polyphenylene sulfide (PPS)
  • Temperature Range: -40°C to 85°C
