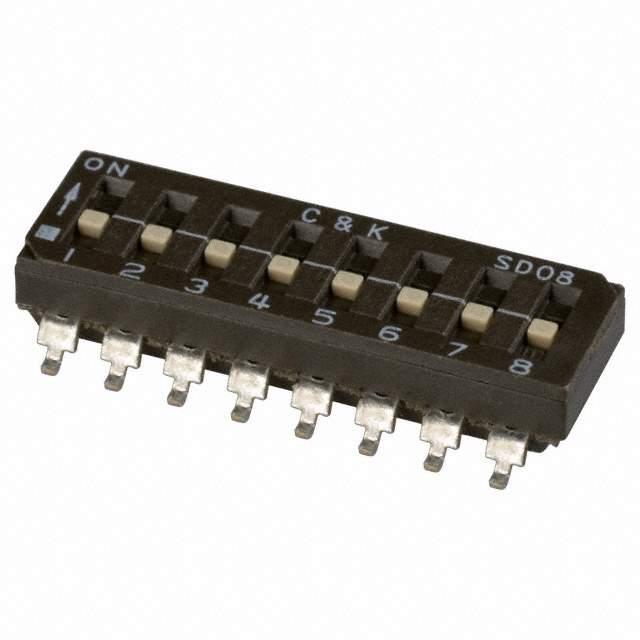

The SD series DIP switch from C&K is an 8-position switch with a pitch of 0.100" (2.54mm), full.

• Series: SD
• Positions: 8
• Pitch: 0.100" (2.54mm), full
• Termination Style: Gull Wing
• Contact Material: Copper Alloy
• Tape Seal: Yes
• Contact Finish: Gold
• Package: Tube
• Body Material: Polyphthalamide (PPA)
• Circuit: SPST
• Actuator Type: Slide (standard)
• Washable: Yes
• Temperature Range: -40°C ~ 85°C
• Electrical Life: 2,000 cycles
• Mechanical Life: 2,000 cycles
• Actuator Level: Raised
• Voltage Rating: 25VDC
• Current Rating: 100mA
• Mounting: SMD (SMT)
• Height Above Board: 0.180" (4.57mm)
• Length: 0.858" (21.80mm)
• ECCN: EAR99
• REACH Affected: No
• Obsolete: Yes
• RoHS Compliant: No
