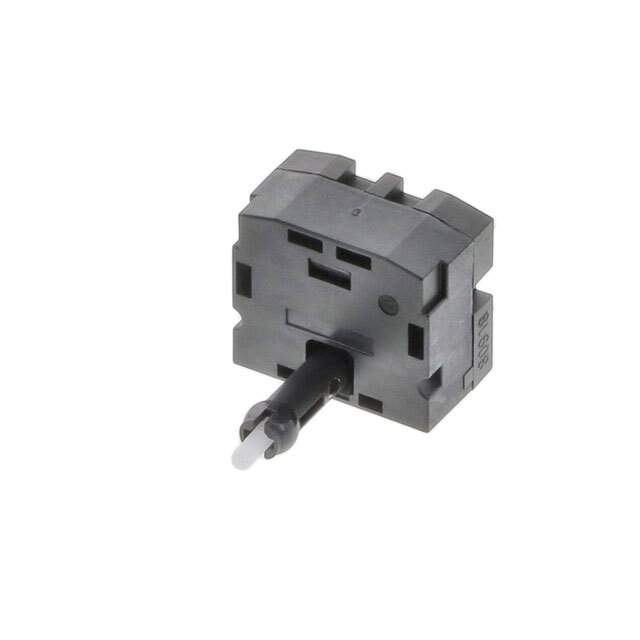

SAM-H2-LR10SPA

Part No SAM-H2-LR10SPA
Manufacturer C&K Components
Catalog Navigation Switches, Joystick
Description NAVIGATIONAL SWITCH, HIGH CURREN  /  Navigation Switch, 1 - Axis Digital (Mechanical Switch) Output
Datasheet
SAM-H2-LR10SPA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Navigation Switches, Joystick
Mfr C&K
Series SAM
Package Tray
Type Navigation Switch, 1 - Axis
Actuator Type Plunger for Cap
Switch Function 2-Way Directional
Output Digital (Mechanical Switch)
Current Rating (Amps) 15A (DC)
Voltage Rating - DC 14 V
Contact Material Silver Alloy
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection IP30
Mechanical Life 30,000 Cycles
Electrical Life 30,000 Cycles
Operating Force 612gf
Base Product Number SAM-H2
Other Names 2266-SAM-H2-LR10SPA,CKN12087
Standard Package 1,440
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233402-SAM-H2-LR10SPA
Ultra Librarian 3D Model Ultra Librarian SAM-H2-LR10SPA CAD Model

Description

The SAM-H2-LR10SPA is a 1-axis navigation switch from C&K that has a plunger for cap actuator type.

  • Series: SAM
  • Mounting Type: Through-Hole
  • Switch Function: 2-Way Directional
  • Output: Digital (mechanical switch)
  • Voltage Rating: 14V DC
  • Current Rating: 15A DC
  • Ingress Protection: IP30
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 30,000 cycles
  • Packaging: Tray
  • ECCN: EAR99
  • HTSUS Code: 8536.50.9065
