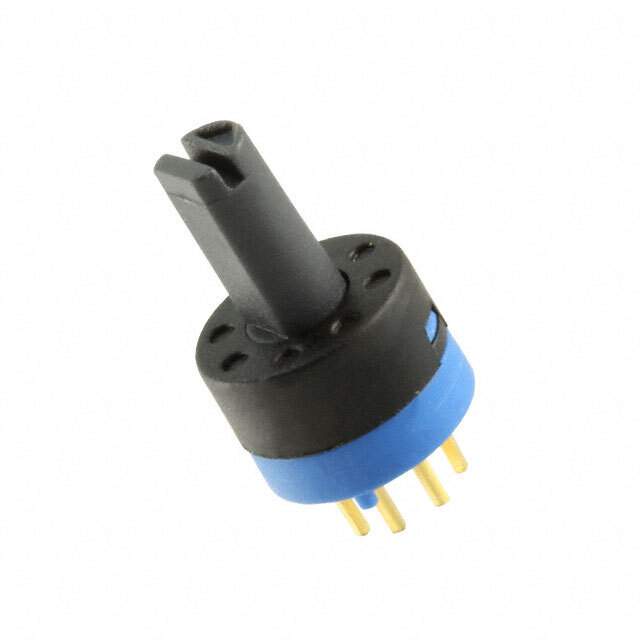

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr C&K
Series RM
Package Tray
Number of Positions 2
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SPDT
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 24 V
Actuator Type Flatted (4.2mm Dia) , Slotted
Actuator Length 7.70mm
Angle of Throw 45°
Contact Material Brass
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Depth Behind Panel 7.37mm
Base Product Number RM102
Standard Package 189
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1344473-RM102772BCB
Ultra Librarian 3D Model Ultra Librarian RM102772BCB CAD Model

Description

The RM102772BCB is a rotary switch from C&K.

  • Number of Positions: 2
  • Contact Timing: Non-Shorting (BBM)
  • Voltage Rating: 24V
  • Current Rating: 500mA (DC)
  • Actuator Type: Flatted (4.2mm Dia), Slotted
  • Actuator Length: 7.70mm
  • Index Stop: Fixed
  • Style: Board to Cable/Wire
  • Package: Tray
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Series: RM
  • Category: Switches - Rotary Switches
