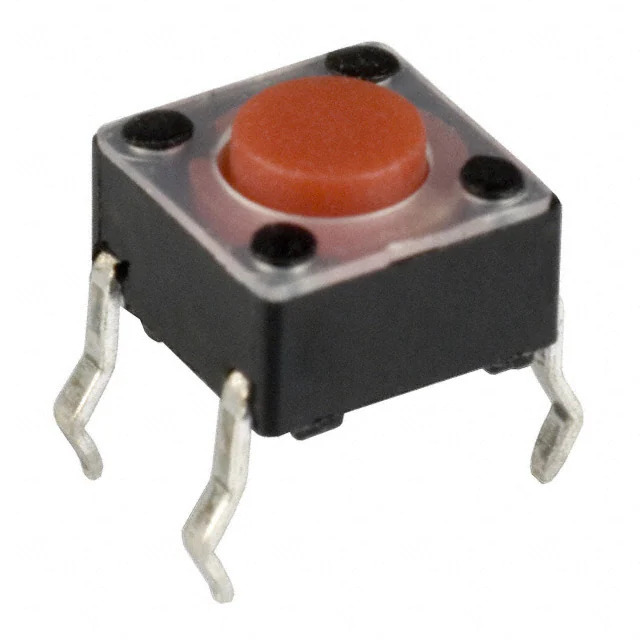

Same model may have multiple batches, images only for reference.

PTS645SK43-2 LFS

Name: PTS645SK43-2 LFS
Brand: C&K Components
SKU: 1376489
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTS645SK43-2 LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet	PTS645SK43-2 LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS645
Package	Bulk
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	4.30mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	-
Mechanical Life	100,000 Cycles
Base Product Number	PTS645
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376489-PTS645SK43-2 LFS
Ultra Librarian 3D Model	Ultra Librarian PTS645SK43-2 LFS CAD Model

Description

The PTS645SK43-2 LFS is a tactile switch from the PTS645 series manufactured by C&K.

Mount: Through-Hole
Termination Style: PC Pin
Mechanical Life: 100,000 cycles
Contact Rating: 0.05A @ 12VDC
Circuit: SPST-NO
Actuator Type: Standard
Switch Function: Off-Mom
Operating Force: 260gf
Actuator Height: 4.30mm
Illumination: Non-Illuminated
Outline Dimension: 6.00mm x 6.00mm
