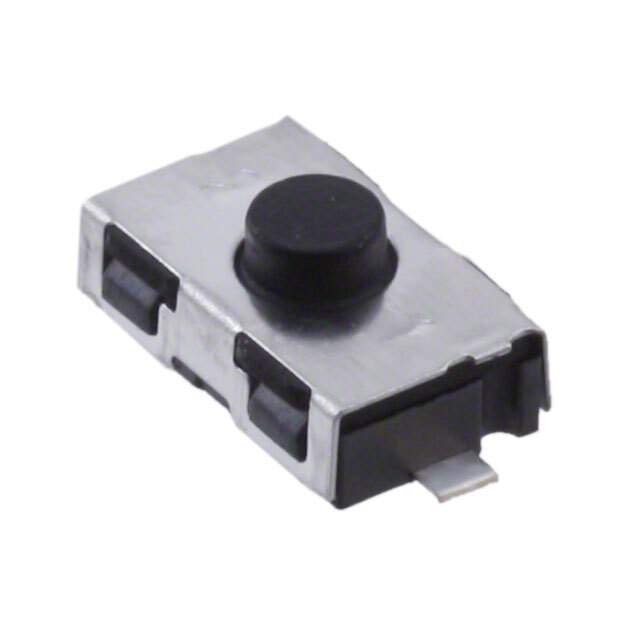

KSR223GLFG

Part No KSR223GLFG
Manufacturer C&K Components
Catalog Tactile Switches
Description KSR Series Subminiature Tact Switch for SMT | SWITCH TACTILE SPST-NO 0.01A 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.01A at 32VDC
Actuator Type Standard
Mounting Style SMD
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 3.80mm
Illumination Non-Illuminated
Operating Force 200gf
Ingress Protection IP50 - Dust Protected
Temperature Range - Operating -40°C ~ 125°C
Actuator Material Rubber
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1193763-KSR223GLFG
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KSR223GLFG CAD Model

Description

KSR223GLFG from C&K Components is a tactile switch used where compact, momentary user input is needed in electronic equipment. Parts in this category are commonly selected for control panels, handheld devices, industrial interfaces, consumer products, and embedded systems that require a dependable push-button feel in a small footprint. For design teams, the value of a tactile switch like KSR223GLFG is its role in improving user interaction while supporting straightforward PCB-based interface design. It may be considered for new builds, maintenance programs, or replacement sourcing when a known C&K tactile switch is specified in the bill of materials. The current lifecycle status for KSR223GLFG is information not available, so engineers and buyers should confirm manufacturer support before committing it to long-term production. RoHS compliance information is also not available from the provided data. Procurement teams should verify the latest environmental compliance declarations, datasheet details, and sourcing status directly through C&K Components or authorized channel partners.
