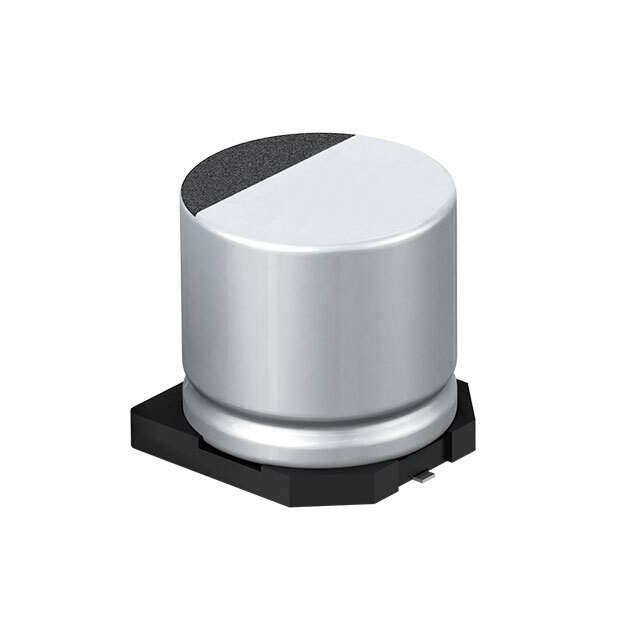

Same model may have multiple batches, images only for reference.

EEE-FK1E101SP

Name: EEE-FK1E101SP
Brand: Panasonic
SKU: 1331162
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-FK1E101SP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 360mOhm @ 100kHz 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	360mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	156 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 100 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-FK
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P18954TR,P18954CT,EEEFK1E101SP,P18954DKR
Standard Package	1,000
Win Source Part Number	1331162-EEE-FK1E101SP
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1E101SP CAD Model

Description

The Panasonic Electronic Components EEE-FK1E101SP is an aluminum electrolytic capacitor that is surface mounted and has a capacitance of 100 µF.

Capacitance: 100 µF
Voltage Rating: 25 V
Tolerance: ±20%
Case/Package: Radial, Can-SMD
Application: Automotive
ESR: 360mOhm @ 100kHz
Lifetime: 2000 Hrs @ 105°C
RoHS3 Compliant: Yes
REACH Affected: No
