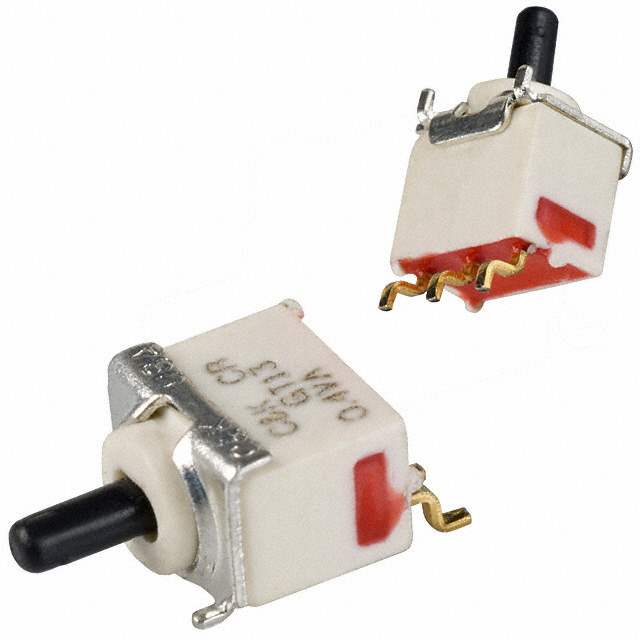

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Reel - TR
Status Active
Circuit SPDT
Switch Function On-Off-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 20V
Voltage Rating - DC 20V
Actuator Type Standard Round
Actuator Length 3.81mm
Illumination Non-Illuminated
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Bushing Thread Unthreaded
Features Sealed
Actuator Material Polyamide (PA), Nylon, Glass Filled
Electrical Life 40,000 Cycles
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 143332-GT13MSABE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GT13MSABE CAD Model

Description

The 143332-GT13MSABE is a surface mount switch from C&K Components.

  • Switch Type: SPDT
  • Switch Function: On-Off-On
  • Voltage Rating: 20V AC and DC
  • Current Rating: 0.4VA (AC/DC)
  • Actuator Type: Standard Round
  • Actuator Length: 3.81mm
  • Electrical Life: 40,000 cycles
  • Illumination: Non-Illuminated
  • Ingress Protection: Sealed
  • Operating Temperature: -30°C to 85°C
