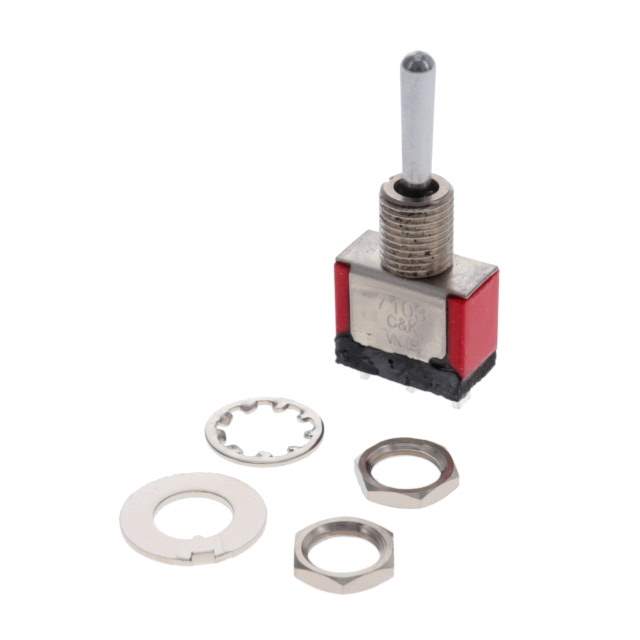

7105SPHWQE Real Image
Same model may have multiple batches, images only for reference.

7105SPHWQE

Part No 7105SPHWQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V / Toggle Switch SPDT Panel Mount
Datasheet
7105SPHWQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Anti-Rotation
Actuator Length 10.67mm
Illumination Non-Illuminated
Termination Style Wire Wrap
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7105
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -7105SPHWQE
Standard Package 40
Win Source Part Number 1190424-7105SPHWQE
Ultra Librarian 3D Model Ultra Librarian 7105SPHWQE CAD Model

Description

The 1190424-7105SPHWQE is a toggle switch from the 7000 series of C&K Components. It is a single pole double throw (SPDT) switch with a Mom-Off-Mom switch function.

  • Series: 7000
  • Manufacturer: C&K Components
  • Switch Type: Toggle
  • Pole and Throw Configuration: SPDT
  • Switch Function: Mom-Off-Mom
  • Voltage Rating: 120V AC / 28V DC
  • Current Rating: 5A (AC/DC)
  • Actuator Type: Anti-rotation
  • Actuator Length: 10.67mm
  • Panel Cutout Dimension: 6.35mm Circular
  • Electrical Life: 40,000 cycles
  • Illumination: Non-Illuminated
  • Operating Temperature: -30°C to 85°C
  • REACH Compliance: Affected
