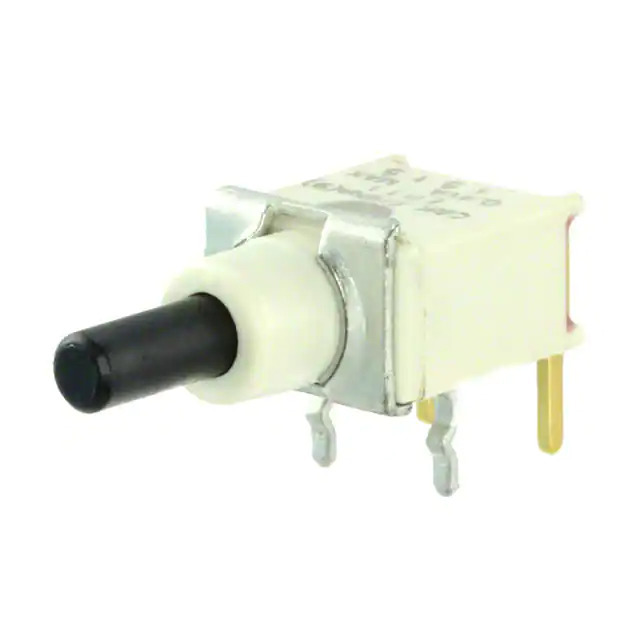

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series EP
Package Tube
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number EP11SD1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376068-EP11SD1ABE
Ultra Librarian 3D Model Ultra Librarian EP11SD1ABE CAD Model

Description

The EP11SD1ABE is a pushbutton switch from C&K's EP series.

  • Mounting Type: Through Hole
  • Actuator Type: Round, Plunger
  • Actuator/Cap Color: Black
  • Marking: None
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Current Rating (AC/DC): 0.4VA
  • Voltage Rating (AC/DC): 20V
  • Termination Style: PC Pin
  • Ingress Protection: IP57
  • Temperature Range: -30°C to 85°C
  • Electrical Life: 60,000 cycles
