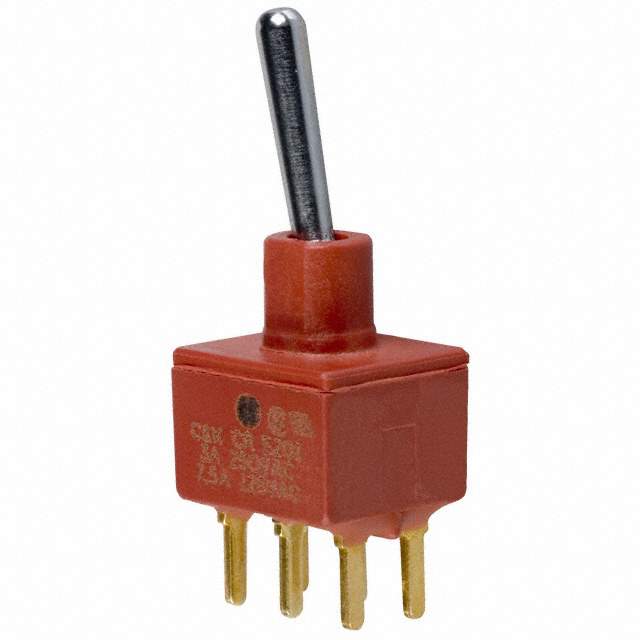

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series E
Package Tray
Mounting Type Through Hole
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 12.70mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number E201
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-E201SD1CBE,CKN1077,*E201SD1CBE
Standard Package 40
Win Source Part Number 970617-E201SD1CBE
Ultra Librarian 3D Model Ultra Librarian E201SD1CBE CAD Model

Description

The E series toggle switch from C&K Components is a DPDT switch that is PC pin terminated. The switch is from C&K Components.

  • Temperature Ranges: -30°C to 85°C
  • Ingress Protection: IP57
  • Protection: dust protected and waterproof
  • Material: brass and chrome plated
  • Voltage Rating: 20 V for both AC and DC
  • Standard Package: 40
  • Electrical Life: 40,000 cycles
  • Family: E201
  • REACH: affected
