Same model may have multiple batches, images only for reference.

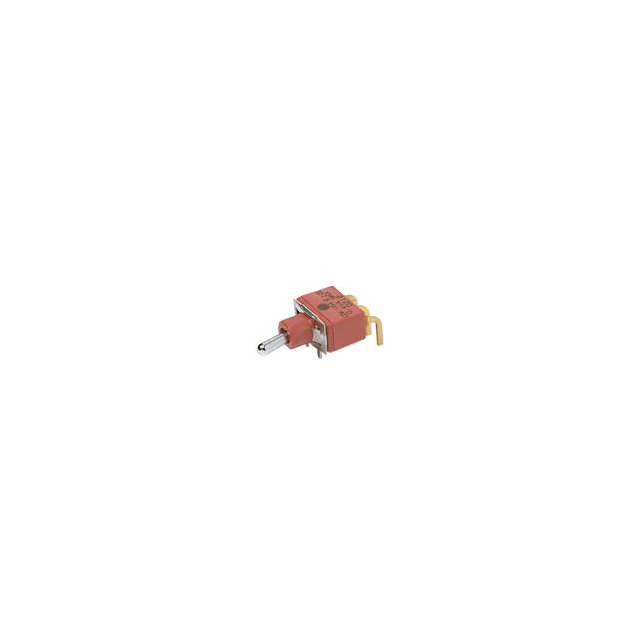

E103SYCQE Real Image
Same model may have multiple batches, images only for reference.

E103SYCQE

Part No E103SYCQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 7.5A 125V
Datasheet
E103SYCQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-Off-On
Current Rating 7.5A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 28V
Actuator Type Standard Round
Actuator Length 10.16mm
Illumination Non-Illuminated
Mounting Panel Mount
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 203501-E103SYCQE
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian E103SYCQE CAD Model

Description

Features and Benefits

  • High thermal resistance for stability.
  • Precision-engineered for consistency and reliability.
  • Easy to install and maintain.

Applications

  • HVAC systems.
  • Power generation equipment.
  • Robotics and automation.

Additional Details

The E103SYCQE component offers exceptional thermal management properties, making it suitable for high-intensity applications. Its precision design minimizes downtime and maintenance.
