Same model may have multiple batches, images only for reference.

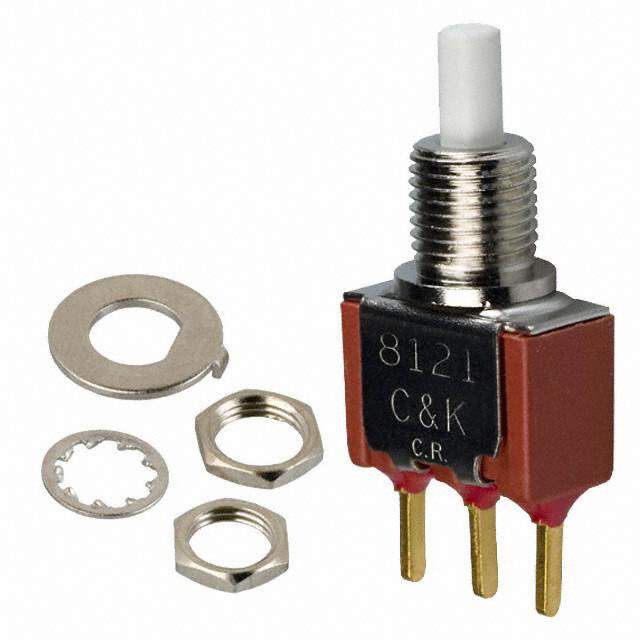

8121SDCGE Real Image
Same model may have multiple batches, images only for reference.

8121SDCGE

Part No 8121SDCGE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 1A 120V / Pushbutton Switch SPDT Standard Panel Mount, Rear
Datasheet
8121SDCGE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series 8020
Package Bulk
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Features Tactile Feedback
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 75°C
Electrical Life 60,000 Cycles
Base Product Number 8121SD
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 8121SDCGE-ND,CKN1622,*8121SDCGE,2266-8121SDCGE
Standard Package 1
Win Source Part Number 1007452-8121SDCGE
Ultra Librarian 3D Model Ultra Librarian 8121SDCGE CAD Model

Description

The 8121SDCGE is a pushbutton switch from C&K's 8020 series.

  • Switch Type: standard
  • Circuit: SPDT
  • Actuator Type: round, plunger
  • Actuator/Cap Color: white
  • Switch Function: On-Mom
  • Tactile Feedback: yes
  • Electrical Life: 60,000 cycles
  • Current Rating (Amps): 1A (AC/DC)
  • Operating Temperature: -30°C to 75°C
  • MSL Level: 1 (Unlimited)
