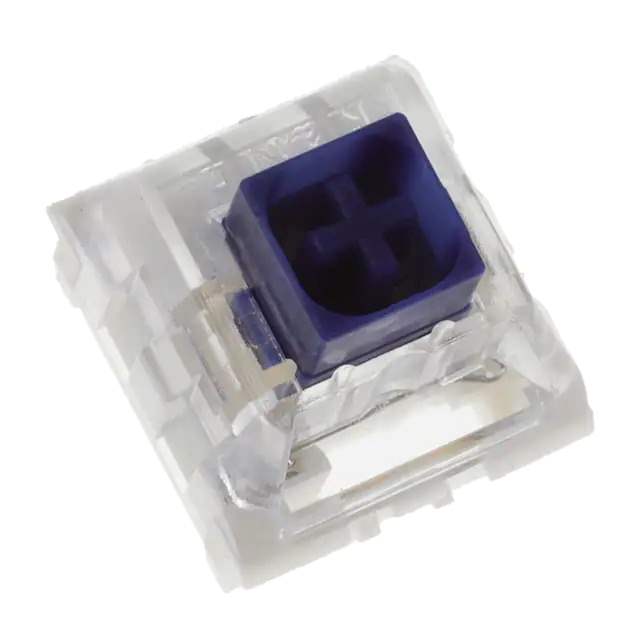

5150 Real Image
Same model may have multiple batches, images only for reference.

5150

Part No 5150
Manufacturer Adafruit Industries LLC
Catalog Pushbutton Switches
Description KAILH MECH KEY SWITCHES 1=10PK / Pushbutton Switch SPST-NO Keyswitch Through Hole
Datasheet
5150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Adafruit Industries LLC
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Keyswitch
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (AC/DC)
Voltage Rating - AC 12 V
Voltage Rating - DC 12 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Blue
Termination Style PC Pin
Ingress Protection IP56 - Dust Protected, Water Resistant
Temperature Range - Operating -10°C ~ 70°C
Mechanical Life 80,000,000 Cycles
Electrical Life 80,000,000 Cycles
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 546364-5150
Ultra Librarian 3D Model Ultra Librarian 5150 CAD Model

Description

The 546364-5150 is a high-quality Keyswitch designed for various electronic applications.

  • Termination Style: PC Pin
  • Circuit Configuration: SPST-NO
  • Voltage Rating: 12V AC/DC
  • Actuator Type: Plunger for cap
  • Electrical Life: 80,000,000 cycles
  • Operating Temperature: -10°C to 70°C
  • Actuator/Cap Color: Blue
