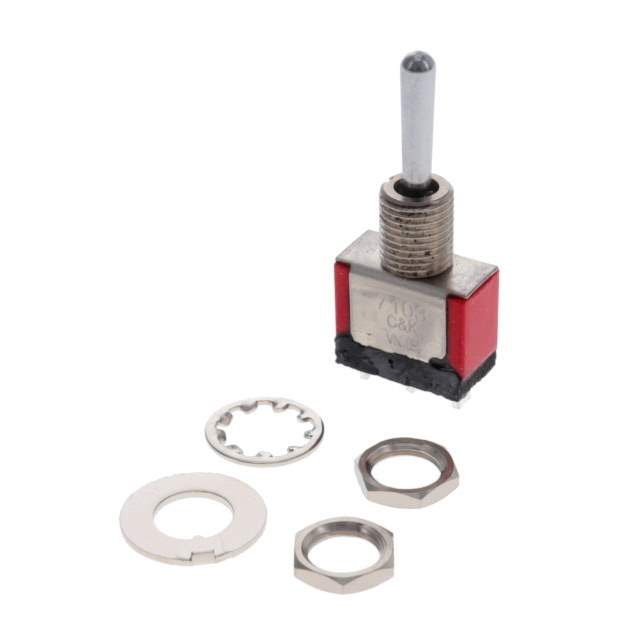

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Through Hole, Right Angle
Circuit SPDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Anti-Rotation
Actuator Length 12.45mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 40,000 Cycles
Base Product Number 7105
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-7105SPD9ABE,-7105SPD9ABE
Standard Package 80
Win Source Part Number 1095498-7105SPD9ABE
Ultra Librarian 3D Model Ultra Librarian 7105SPD9ABE CAD Model

Description

The 1095498-7105SPD9ABE is a SPDT toggle switch from the 7000 series of C&K Components.

  • Switch Type: SPDT toggle switch
  • Series: 7000
  • Terminals: epoxy-sealed
  • Actuator Material: brass
  • Actuator Plating: chrome plated
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA
  • Actuator Type: anti-rotation
  • Actuator Length: 12.45mm
  • Electrical Life: 40,000 cycles
  • Illumination: non-illuminated
  • Mounting Type: through-hole, right-angle
  • Temperature Range: -30°C to 85°C
  • Packaging: bulk
  • Standard Package: 80
